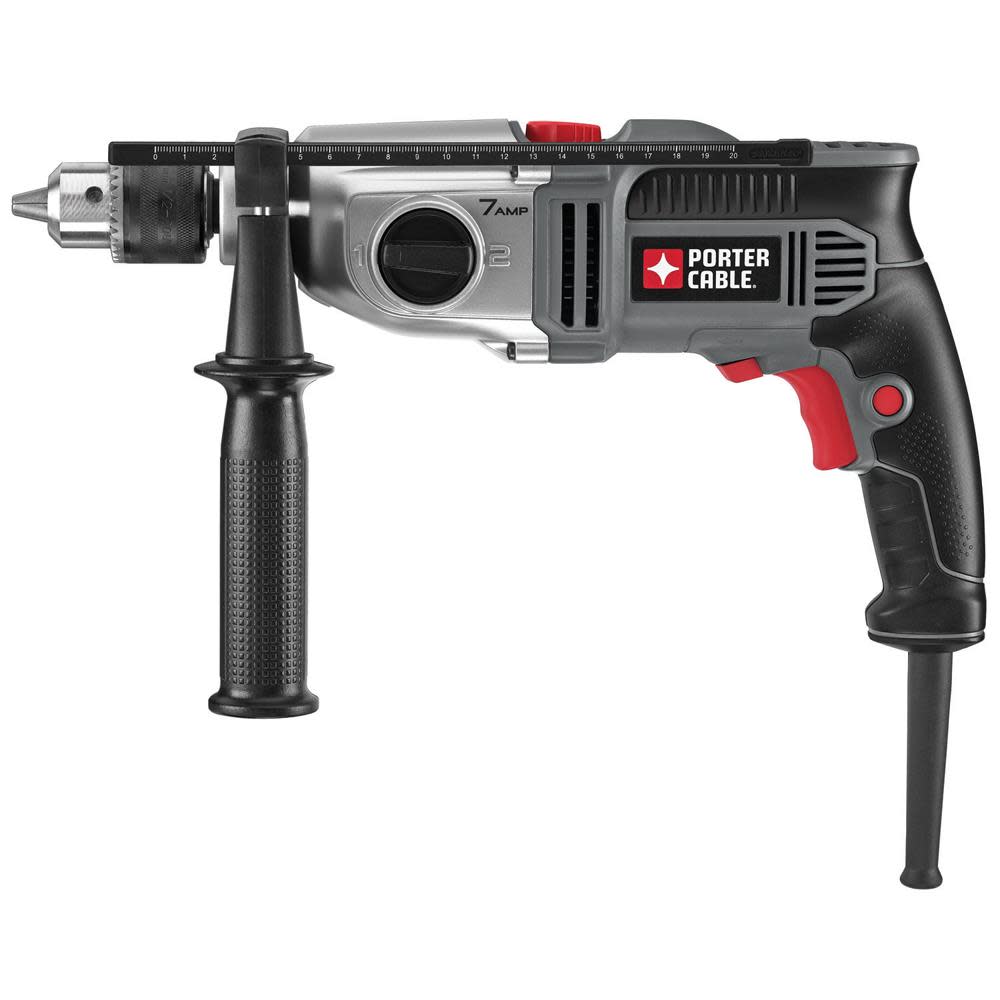

1/2-in VSR 2 Speed Hammerdrill
When you need power and durability in tough drilling applications, this 7-amp hammer drill is for you. The variable-speed, reversible motor (0-1,100/3,100-RPM) is optimal for either maximum torque or maximum speed whether you are drilling into metal, wood, concrete or masonry. Harder materials are no match for the 52,700-BPM impact mechanism, and the 1/2-in keyed chuck provides increased bit retention even during those tougher tasks. A side handle allows for more control in heavy applications, and the 2-finger locking trigger is ideal during extended use. The overall streamlined design increases comfort and reduces user fatigue.
Features
7-amp hammer drill for concrete, brick, wood, metal and other tough materials
1/2-in keyed chuck provides increased bit retention
Variable-speed reversible motor (0-1,100/3,100-RPM) ideal for max torque or max speed
Side handle allows for more control in heavy applications
5.1-lbs
6-ft cord
3-year base warranty
52,700-BPM impact mechanism
Cast-metal gear housing
Specifications
Acme Tools Brand Name
PORTER CABLE
Acme Tools Part Number
PC70THD
Amperage (A)
7
Assembled Weight (lbs)
5.1
California Proposition 65 Warning Required
Yes
Case Included
No
Chuck Design
Keyed
Chuck Size
1/2 In
Color / Finish
Grey, Black, Red
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Drill / Driver Maximum RPM
3100
Drill Amperage (A)
7
Drill Type
Hammer Drill
Electronic Speed Control
No
ETL Listed
No
Handle Type
Pistol
Height (in)
11.0
Housing Material
Plastic
Impacts per Minute
52700.0
Integrated Light
No
Internal Supplier Part #
PC70THD
Internet Product Code (IPC)
AF1CF3A8C58
Length (in)
14.0
Lock-on Switch
Yes
Manufacturer Warranty
3 year limited warranty/1 year free service contract/90 day money back guarantee
Maximum RPM
3100
Maximum Torque (ft-lbs)
0.0
Net Tool Weight (lbs)
5.1
Number of Hammer Settings
2
Package Contents
PC70THD; Chuck key and holder; Side Handle; Depth Rod
Package Weight
5.1
Package Weight (lbs)
5.1
Powered Tool Power Source
Electric – Corded
Reverse
Yes
Side Handle
Yes
Switch Type
Trigger
Tool Handle Type
Pistol
UL Listed
Yes
Variable Speed
Yes
Voltage
120
Voltage (V)
120.0
Width (in)
3.0
