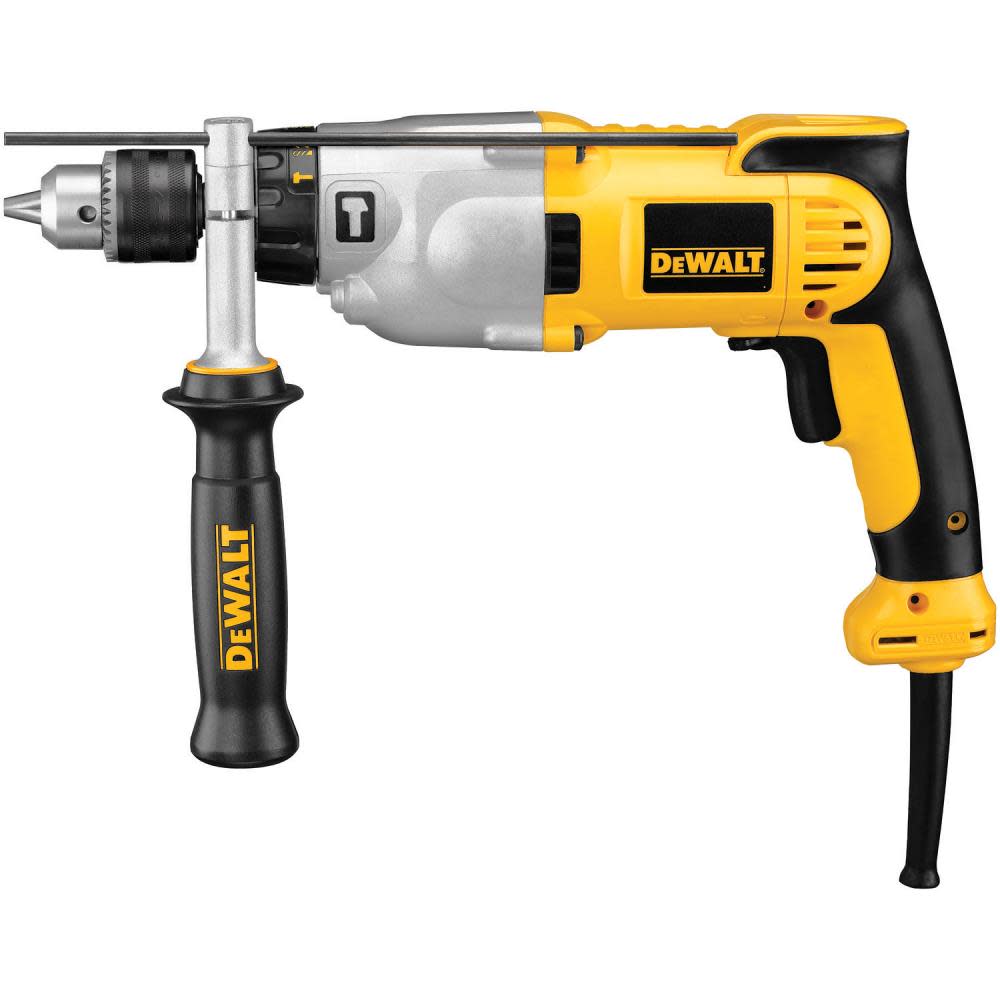

10 Amp 1/2 in. VSR Pistol Grip Hammerdrill
The DWD520, 1/2-in VSR Pistol Grip Hammerdrill can be set to either drill or hammerdrill mode for applying to masonry, wood, or steel. Includes a 2-speed range for high speed drilling or torquing. Soft grip handle and two-finger trigger increases user’s comfort and control.
Features
Patented DEWALT® built motor design generates 50% more power with increased overload protection for added durability
Dual mode: hammer drill/drill for versatility in masonry or wood and steel drilling applications
2-Speed range for high-speed drilling or high-torque applications
Pistol grip design with soft grip provides increased balance and comfort
Independently certified to meet applicable standards
8-Ft cord
3-Year base warranty
56,000-BPM impact mechanism
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DWD520
Amperage (A)
10
Assembled Weight (lbs)
7.75
California Proposition 65 Warning Required
Yes
Case Included
No
Chuck Design
Keyed
Chuck Size
1/2 In
Color / Finish
DEWALT® Yellow, Black & Silver
Cord Length (ft)
8.0
Cordless / Corded
Corded
Country of Origin
Mexico
CSA Certified
Yes
Drill / Driver Maximum RPM
3500
Drill Amperage (A)
10
Drill Type
Hammer Drill
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
Pistol
Height (in)
8.25
Housing Material
metal
Impacts per Minute
56000.0
Integrated Light
No
Internal Supplier Part #
DWD520
Internet Product Code (IPC)
66E22AF5BC3
Length (in)
14.0
Lock-on Switch
Yes
Manufacturer Warranty
3 Year Limited Warranty / 1 Year Free Service Contract / 90 Day Money Back Guarantee
Maximum RPM
3500
Maximum Torque (ft-lbs)
980.0
Net Tool Weight (lbs)
6.0
Number of Hammer Settings
1
Package Contents
Hammer drill, 360° locking side handle, steel depth rod, chuck key and holder
Package Depth
10.5
Package Height
3.25
Package Weight
7.75
Package Weight (lbs)
7.75
Powered Tool Power Source
Electric – Corded
Reverse
Yes
Side Handle
Yes
Switch Type
Trigger
Tool Handle Type
Pistol
UL Listed
No
Variable Speed
Yes
Voltage
120.0
Voltage (V)
120.0
Width (in)
3.0
