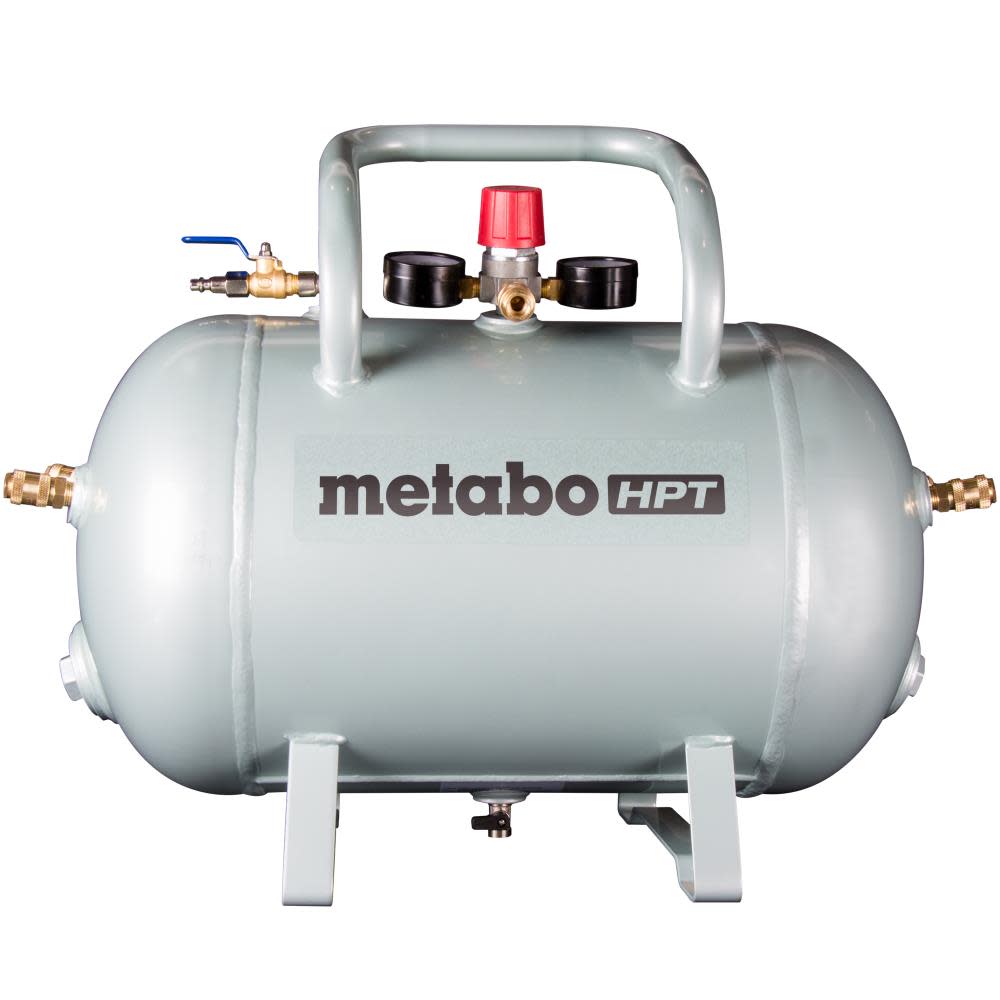

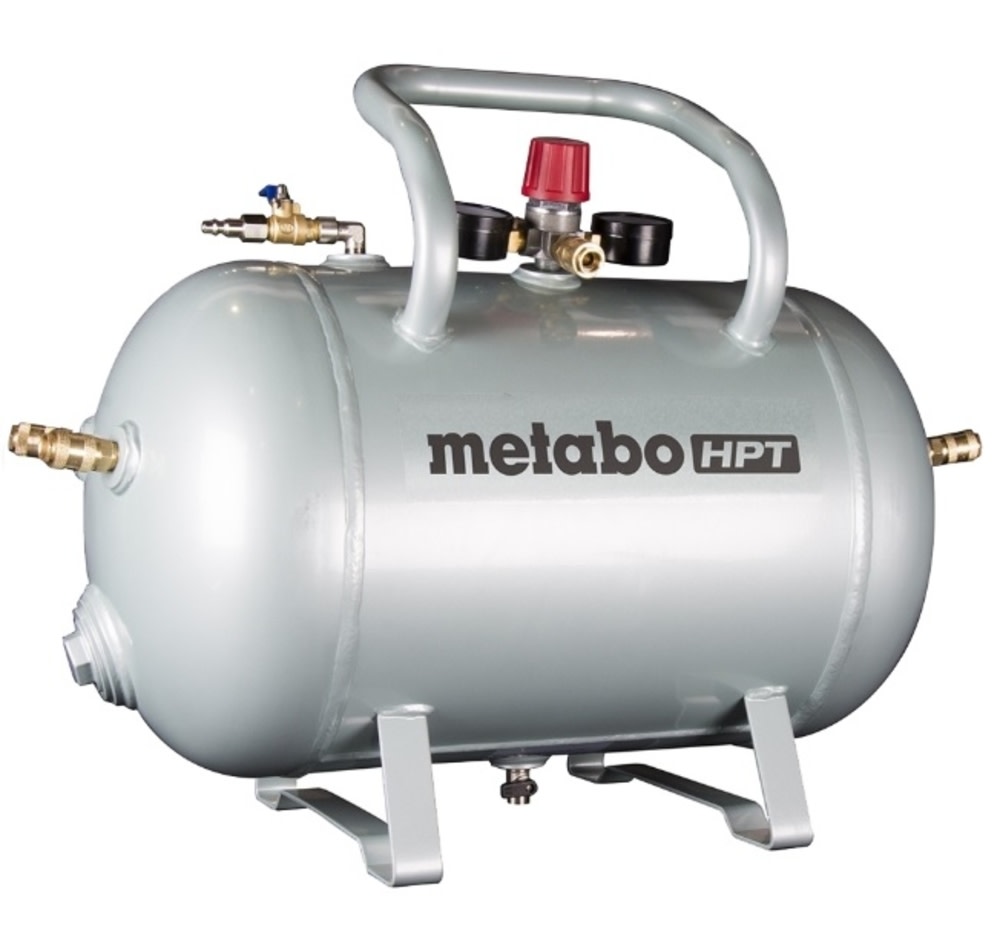

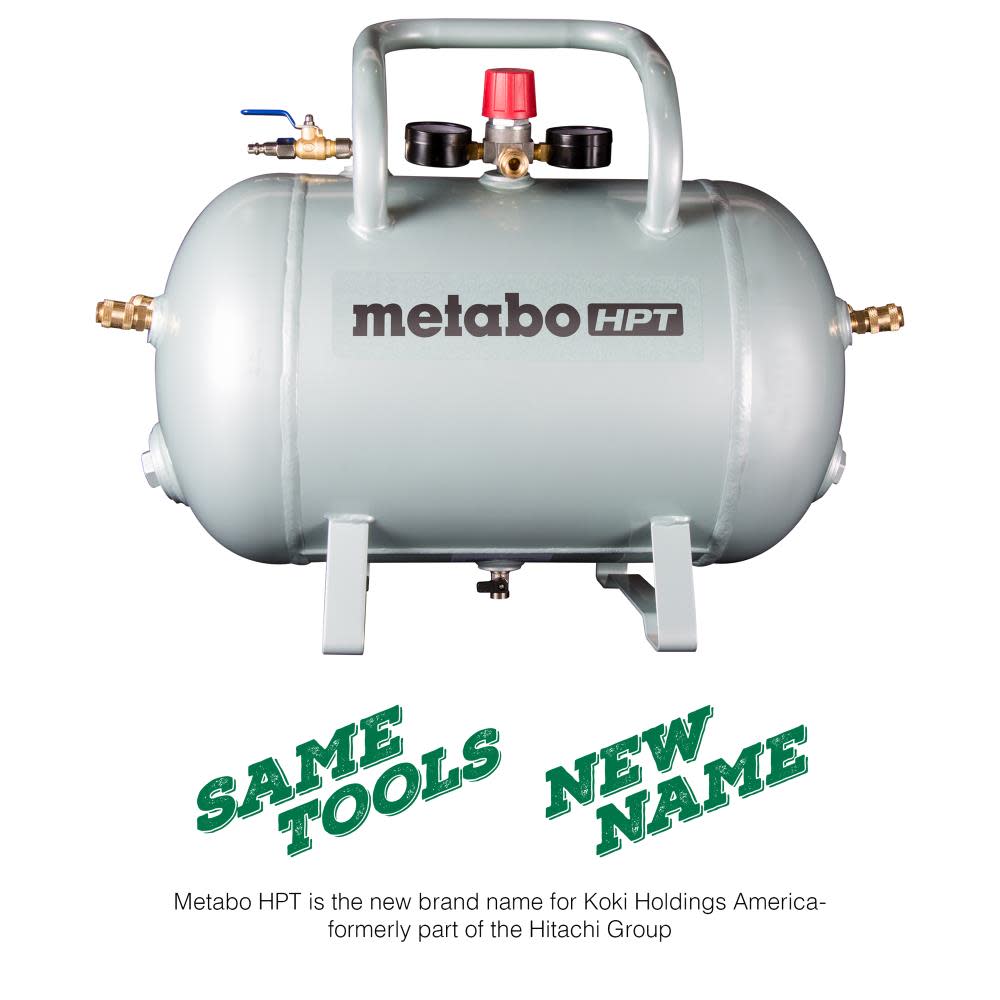

10 Gallon ASME Certified Reserve Tank
The UA3810AB 10-Gallon ASME Certified Reserve Air Tank is the perfect addition to the jobsite to ensure the air pressure being supplied to all nailers is sufficient, and that the required PSI remains constant – even if the compressor is 200 or more feet away. Simply add this reserve air tank between the compressor and nailers and there will be enough pressure to power five or more nailers operating at the same time. In the event that a nailer requires less PSI than other nailers attached, the UA3810AB has that situation covered with its standard factory installed large knob regulator.
Features
APPLICATION: Ensure the air pressure being supplied to all nailers is sufficient, and that the required PSI remains constant – even if the compressor is 200 or more feet away
SHUT_OFF: Industrial ball (Shut-off) valve on input allows tank to be filled and disconnected from compressor without it draining itself
CAPACITY: 10-gallon capacity ensures sufficient pressure to power five or more nailers at the same time
COUPLERS: 5 quick connect couplers (4 unregulated + 1 regulated) allow for easy one handed connections of hoses and/or splitters
GAUGES: Industrial pressure gauges are encased in steel for high durability
DURABILITY: Angled steel legs provide additional support, stability, and increase durability despite the abuse endured by hostile jobsite use
CERTIFICATION: Certified by the American society of mechanical engineers (ASME), ensures compliance with laws and regulations of all U.S. states
ROLL CAGE DESIGN: Protects regulator and gauges
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
UA3810ABM
Assembled Weight (lbs)
40.0
California Proposition 65 Warning Required
No
Color / Finish
Silver
Cordless / Corded
Corded
Country of Origin
China
Height (in)
20.94
Internal Supplier Part #
UA3810ABM
Internet Product Code (IPC)
BA26AC75169
Length (in)
24.41
Manufacturer Warranty
1 Year
Maximum Pressure Rating (psi)
75.0
Package Depth
13.5
Package Height
21.5
Package Weight
46
Package Weight (lbs)
40
Tank Capacity (gal)
10.0
Tank Configuration
Single
Tank Material
Steel
Type of Air Compressor Tank
Portable
Width (in)
13.39
