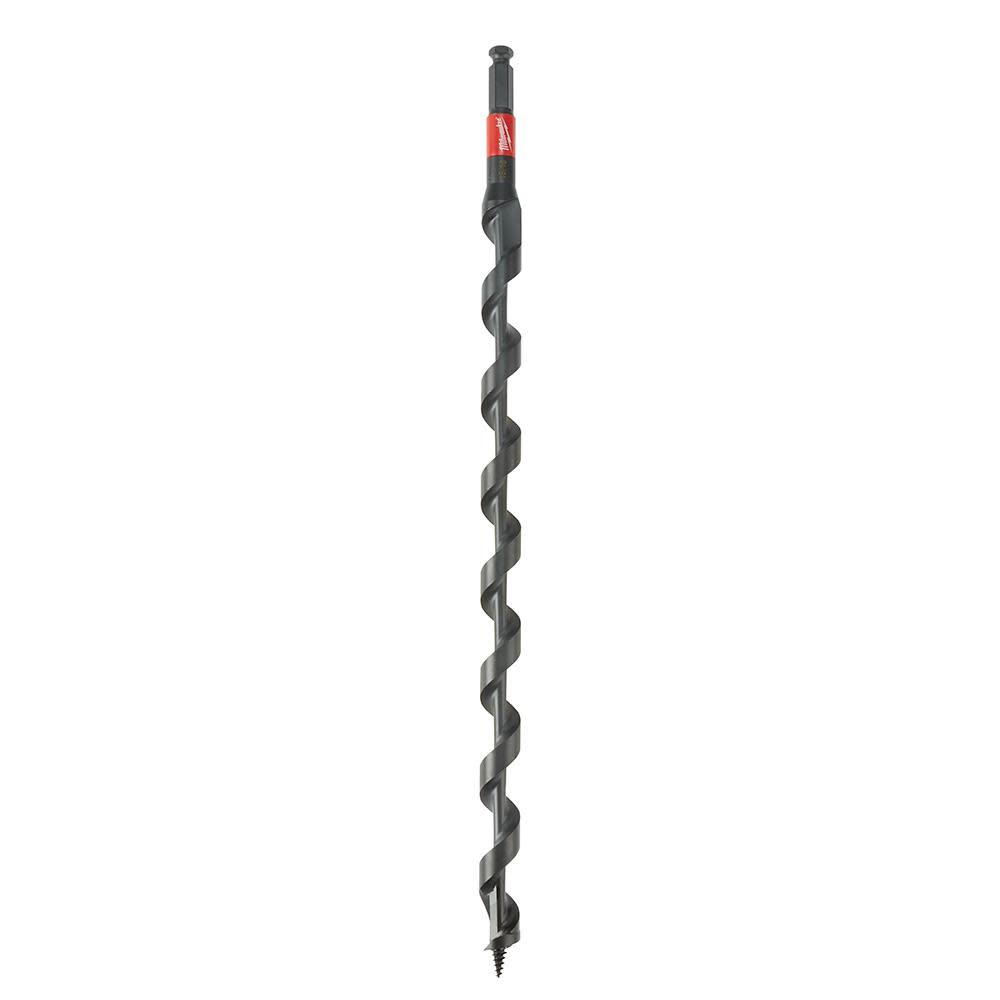

15/16 in. x 30 in. SHOCKWAVE™ Lineman’s Impact Auger Bit
The SHOCKWAVE™ lineman’s impact auger bits are engineered to deliver cleaner, faster holes in wooden utility poles. They feature a single spur design, which scores the edge of the hole, creating a cleaner finish that allows bolts to slide through without resistance. The bits are coated with a reinforced anti-friction PTFE coating for overall smoother drilling and easier removal of the bit from the pole. The aggressive feed screw and cutting edge pull the bit through the material while the optimized wide flute geometry quickly ejects the chips to clear the hole and reduce clogs, leading to overall faster drilling speeds.
Features

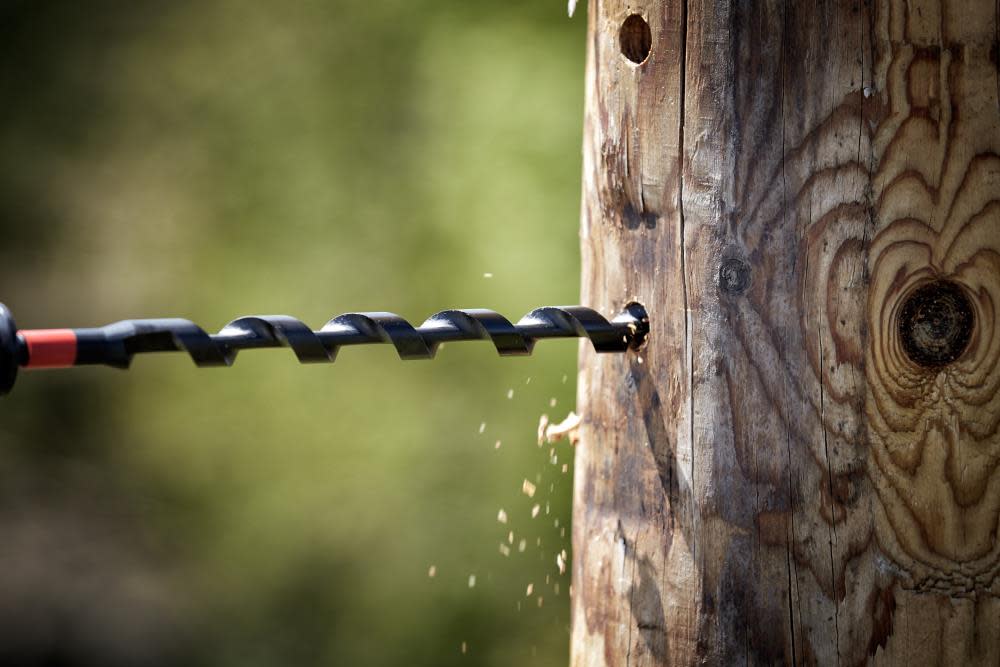

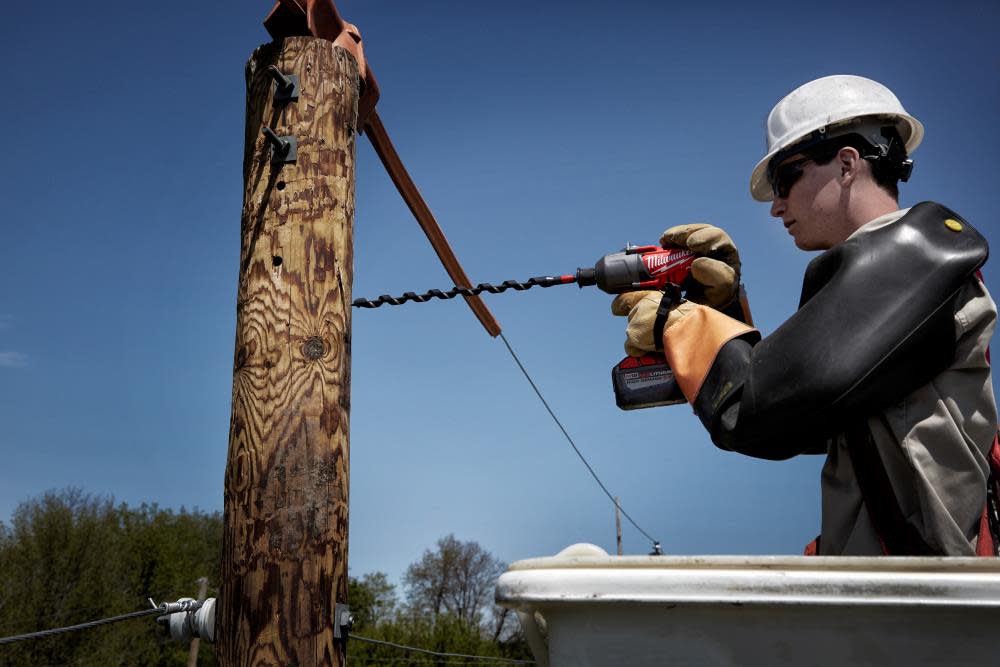

Engineered for the power utility lineman to drill cleaner, faster holes in wooden utility poles
Single spur design scores the hole for a cleaner finish
Reinforced anti-friction PTFE coating for overall smoother drilling
Optimized wide flute geometry for faster chip ejection
Aggressive feed screw and cutting edge for faster drilling speeds
7/16 in. hex shank for quick connection into 7/16 in. quick connect chucks
Available in 18 in., 24 in. and 30 in. lengths
Designed for drilling into wooden utility poles recommended for clean wood only
Solid stemmed core for added strength
Specifications
Acme Tools Brand Name
MILWAUKEE
Acme Tools Part Number
48-13-6909
Assembled Weight (lbs)
2.36
Bit Diameter
0.9375
Bit Type
Auger
California Proposition 65 Warning Required
No
Case Included
No
Country of Origin
China
Diameter
15/16 in
Drilling Depth (in)
27
Flute Length (in)
27
Internal Supplier Part #
48-13-6909
Internet Product Code (IPC)
73A8516D7F6
Length (in)
30
Manufacturer Warranty
None
Minimum Chuck Size Required
3/8 in
Package Contents
(1) Auger Bit
Package Depth
31.25
Package Height
1.625
Package Weight
2.31
Package Weight (lbs)
2.36
Self Feeding
Yes
Set / Individual
Individual
Shank Diameter
0.4375 in
Shank Diameter (in)
0.4375
Single / Double Ended
Single
