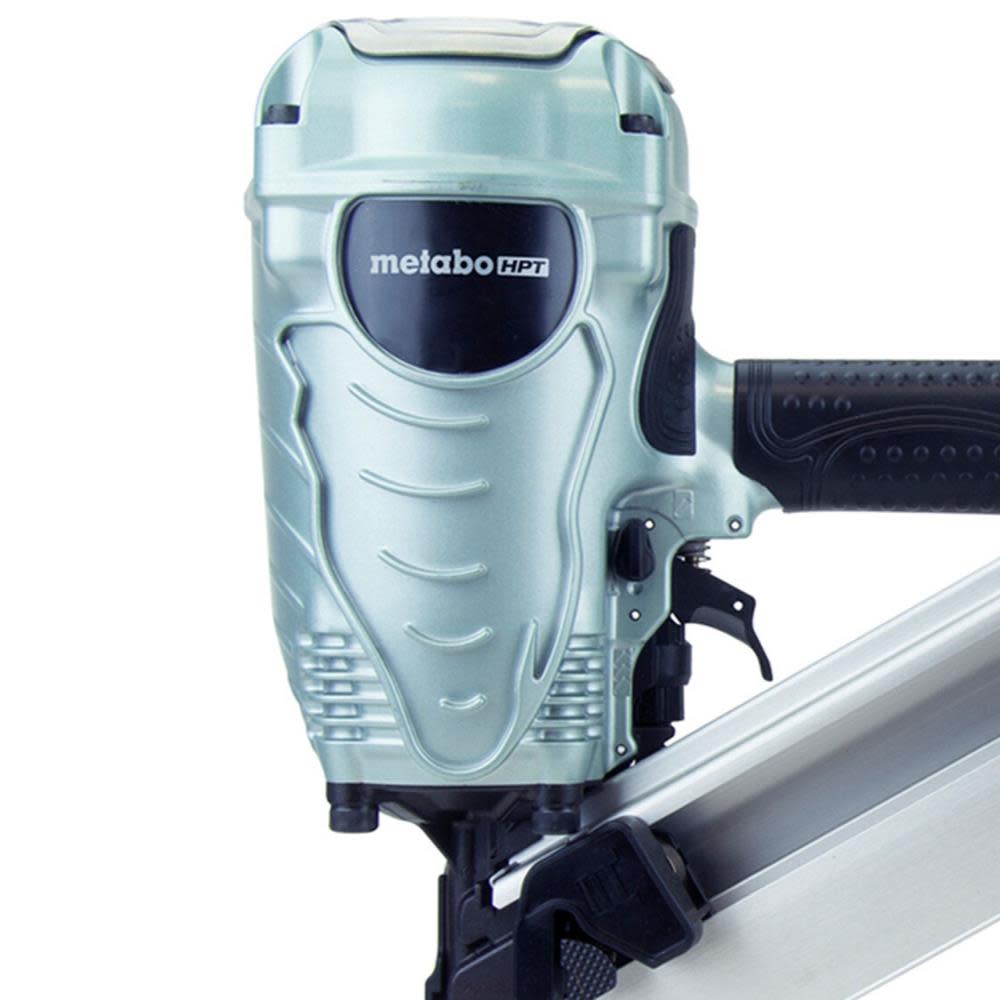

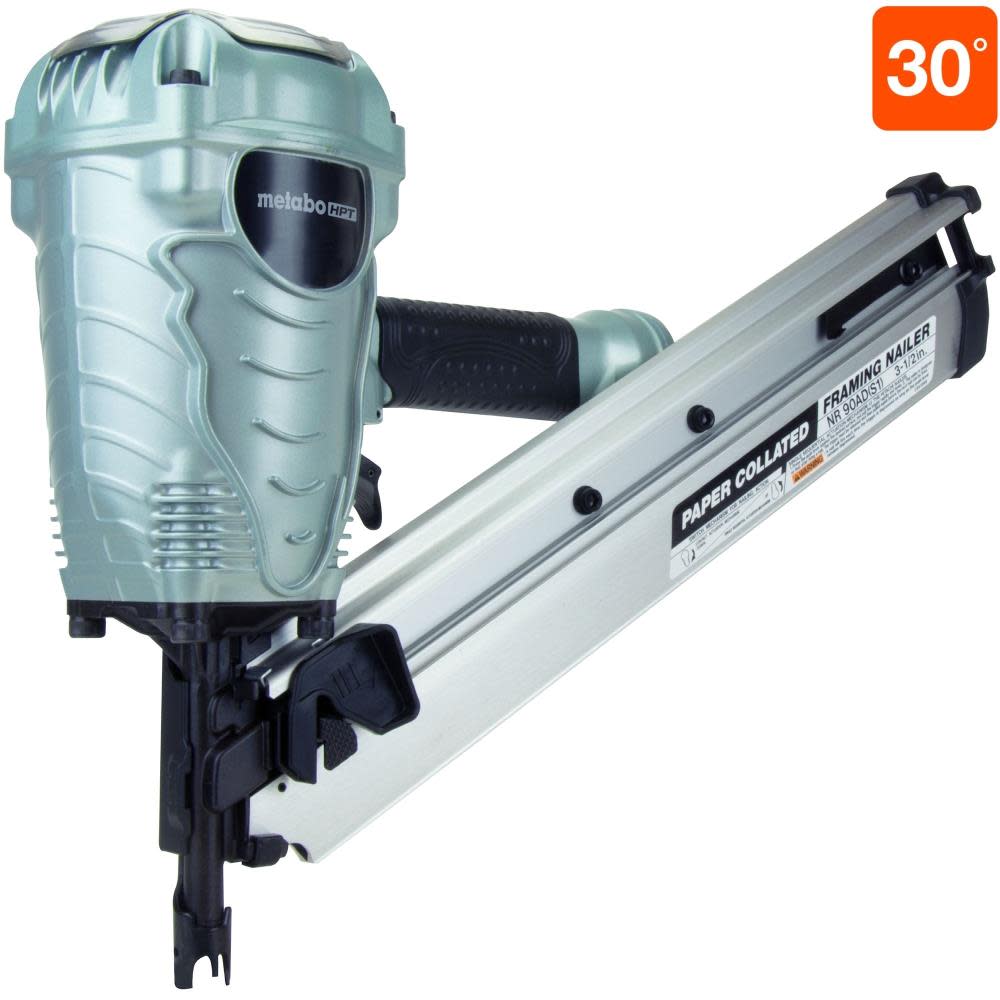

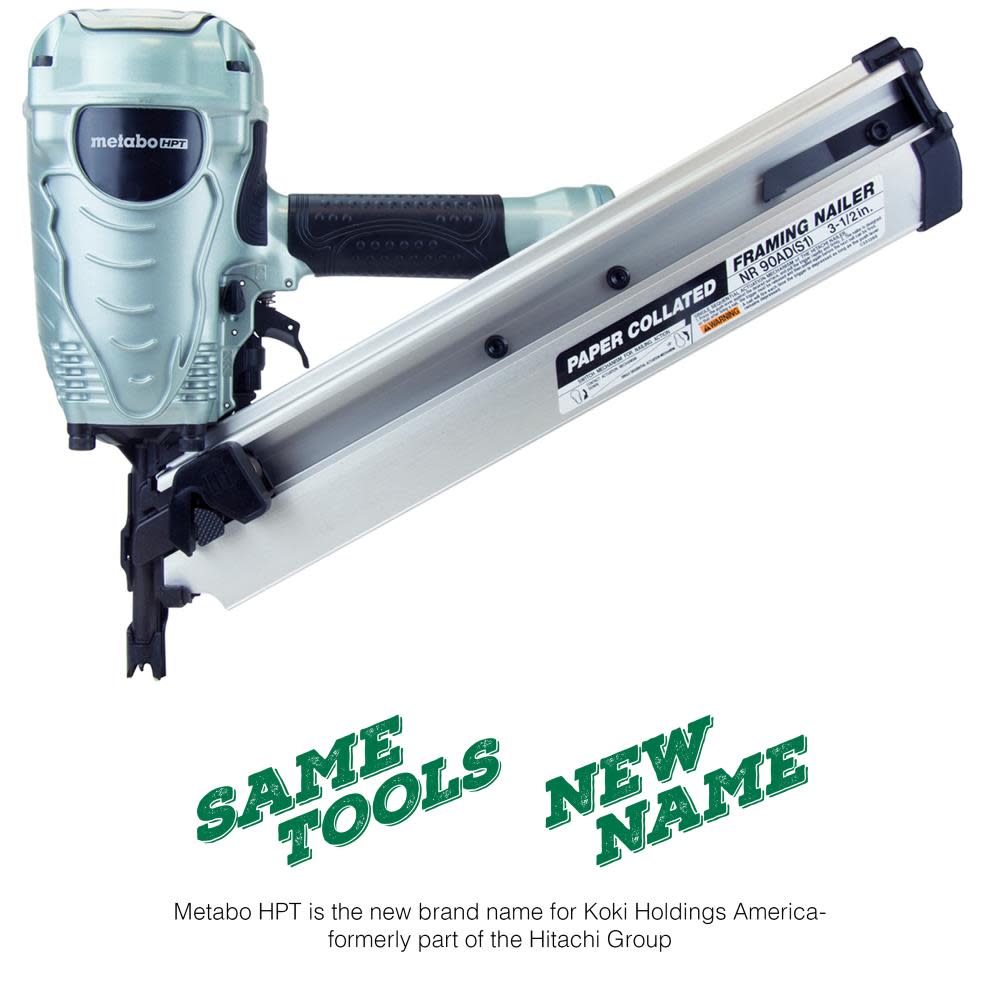

3-1/2-in Framing Nailer

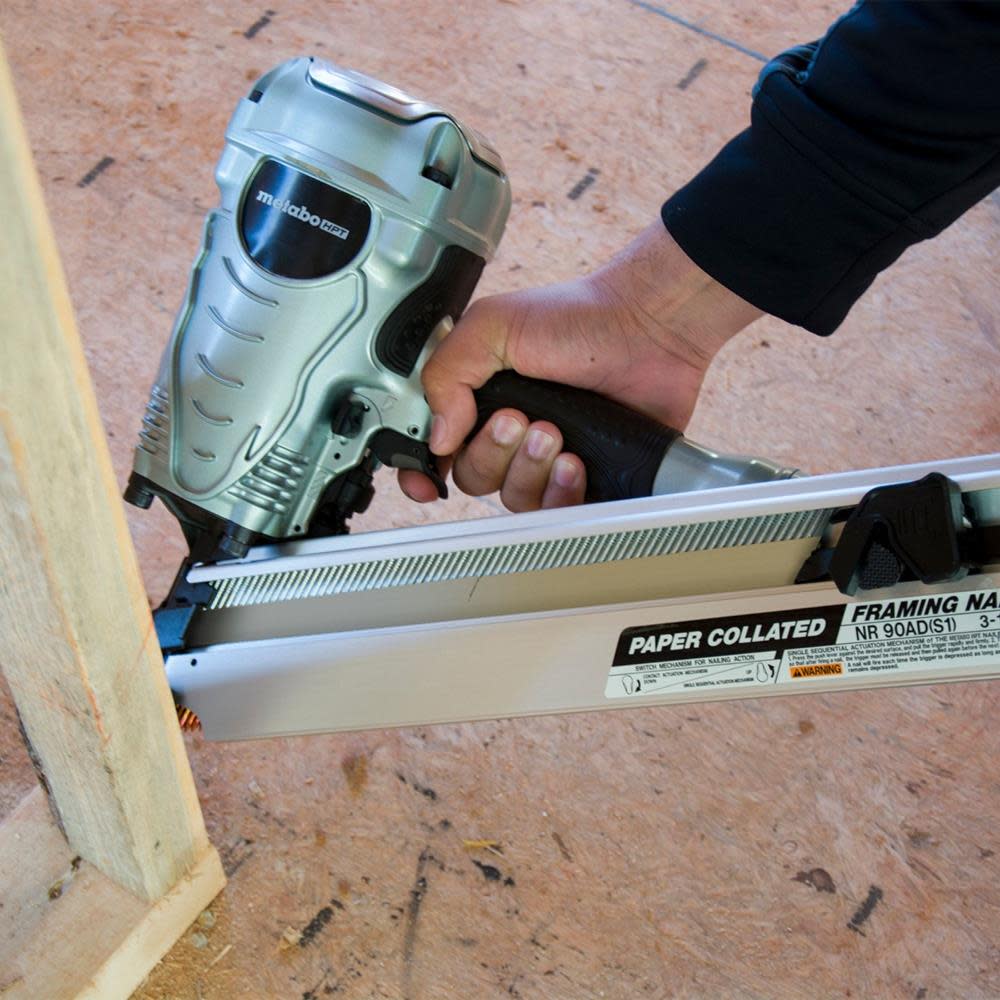

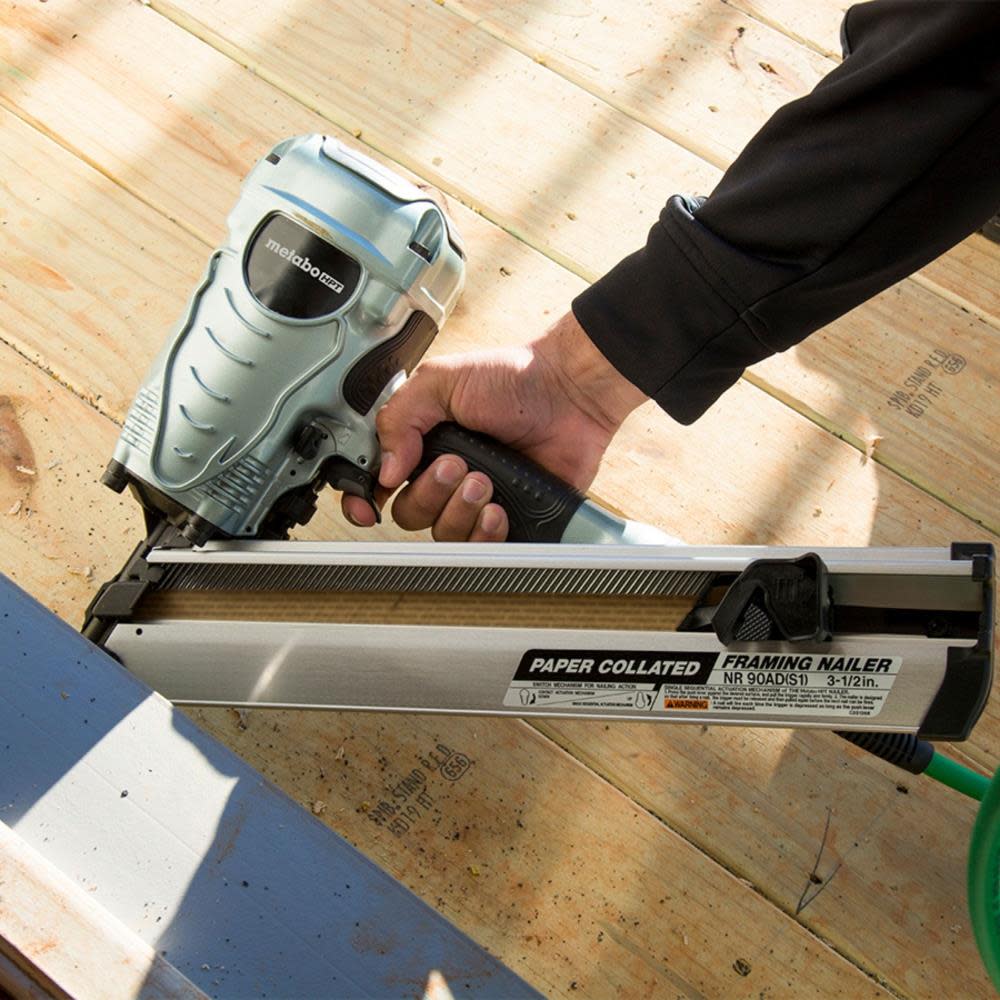

The NR90AD(S1)M framing nailer drives paper collated nails from 2″ up to 3-1/2″ in length and features Metabo HPT’s next generation “industrial design.” Weighing only 7 lbs, it is easy to use all day, while still providing the power of a bulkier, heavier nailer. It can be used for floor and framing, truss build-up, window build-up, sub flooring, roof decking, wall sheathing and housing construction. Allows for quick transitions between sequential and contact nailing with the simple flip of a switch.
Features
APPLICATIONS: Great for floor and framing, roof decking and housing construction
LIGHTWEIGHT: Only 7 lbs and well-balanced for ease of maneuverability and less user fatigue
SELECTIVE ACTUATION: Allows for quick transitions between sequential and contact nailing with the simple flip of a switch

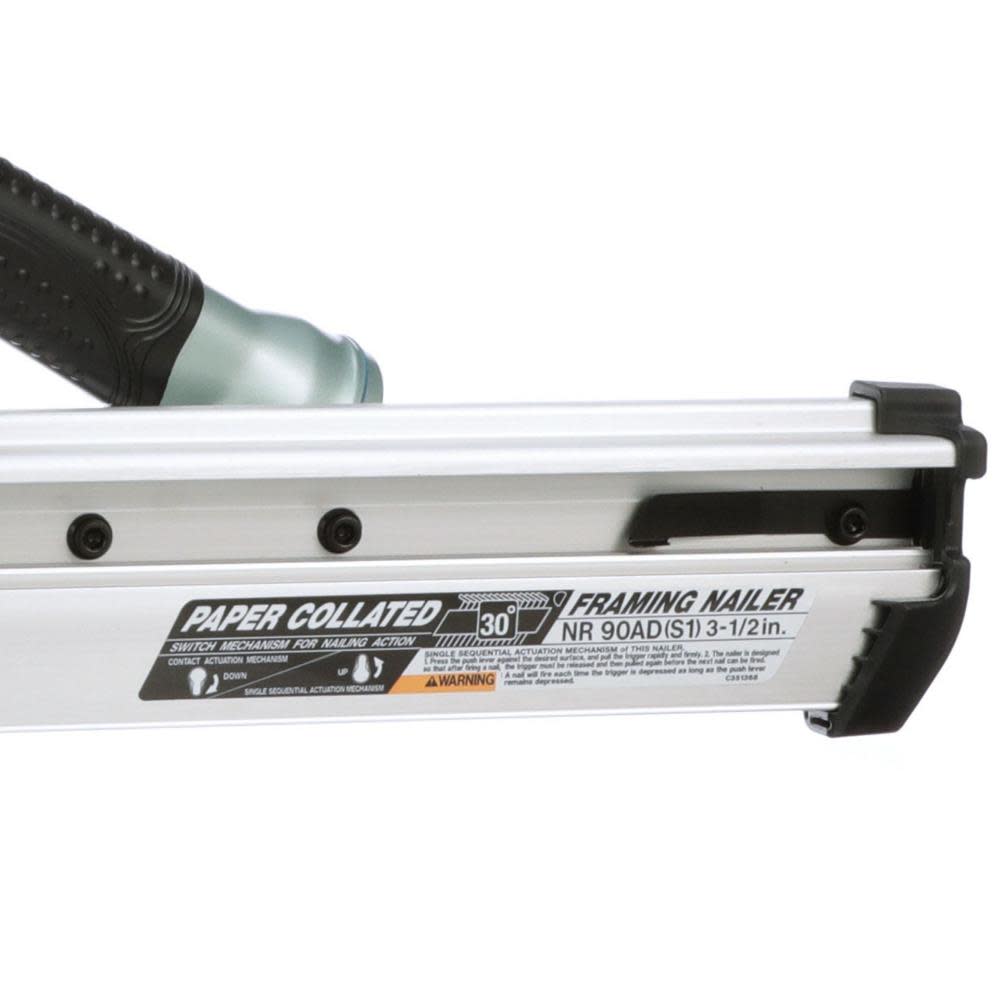

FASTENERS: Accepts 2-in up to 3-1/2-in paper collated framing nails
DEPTH ADJUSTMENT: Easy tool-less adjustment dial allows for countersink or flush driving nails into a variety of materials
LOADING: Two-step nail loading makes fastener replenishment quick and easy
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
NR90ADS1M

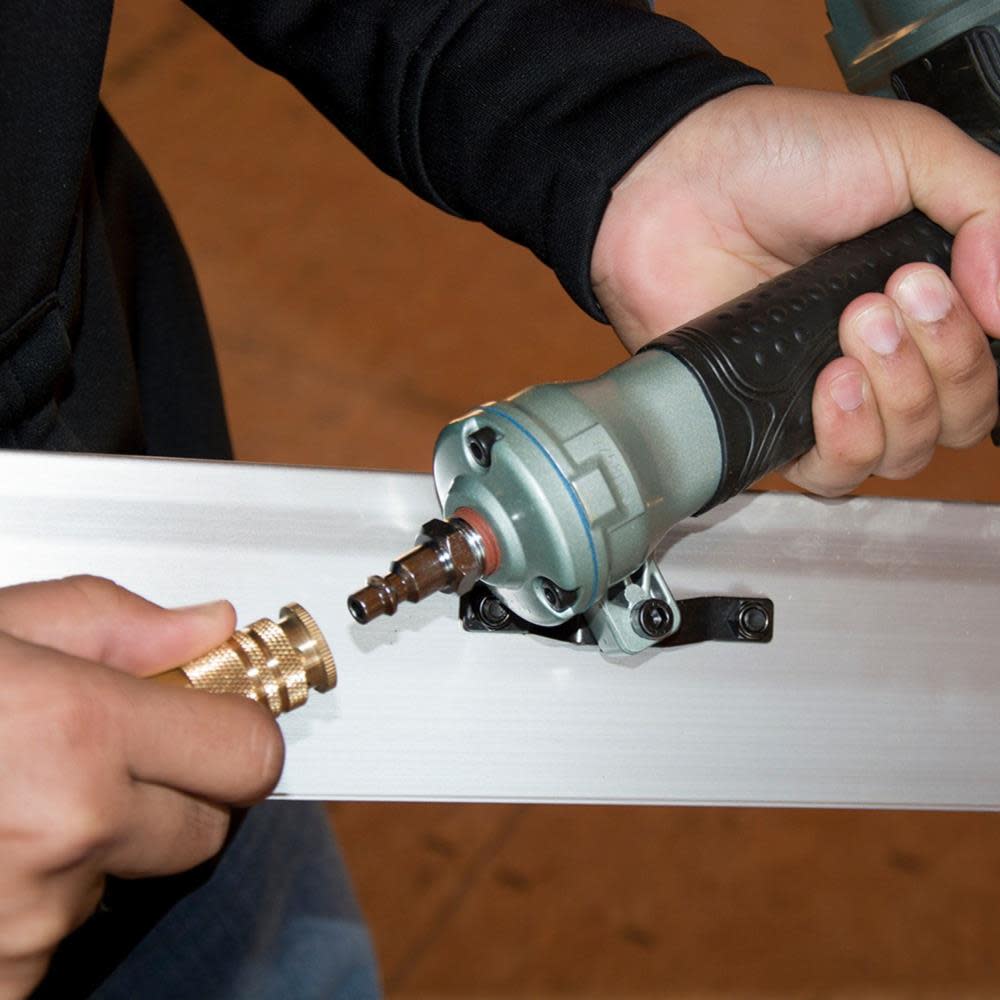

Air Inlet Size (in)
0.375
ANSI Safety Listing
Yes
Assembled Weight (lbs)
7.0
California Proposition 65 Warning Required
Yes
Case Included
No
Color / Finish
Green and black
Cordless / Corded
Corded
Country of Origin
China
Depth Control
Tool free
Fastener Format
Strip
Fastener Gauge Range
30-34 Degree Paper Tape Clipped Head Nail
Fastener Length Range
30-34 Degree Paper Tape Clipped Head Nail
Fasteners Used
30-34 Degree Paper Tape Clipped Head Nail
Height (in)
22
Housing Material
Aluminum
Internal Supplier Part #
NR90ADS1M
Internet Product Code (IPC)
2B5F2CBBC46
Length (in)
15.5
Magazine Capacity
74
Manufacturer Warranty
5 Year
Nailer / Stapler Design
Nailer
Nailer / Stapler Power
Pneumatic
Net Tool Weight (lbs)
9.7
Operating Pressure
70
Package Depth
4.9
Package Height
46.23
Package Weight
4.54
Package Weight (lbs)
10
Pneumatic Nailer Type
Framing
Powered Tool Power Source
Pneumatic
