Description
Description

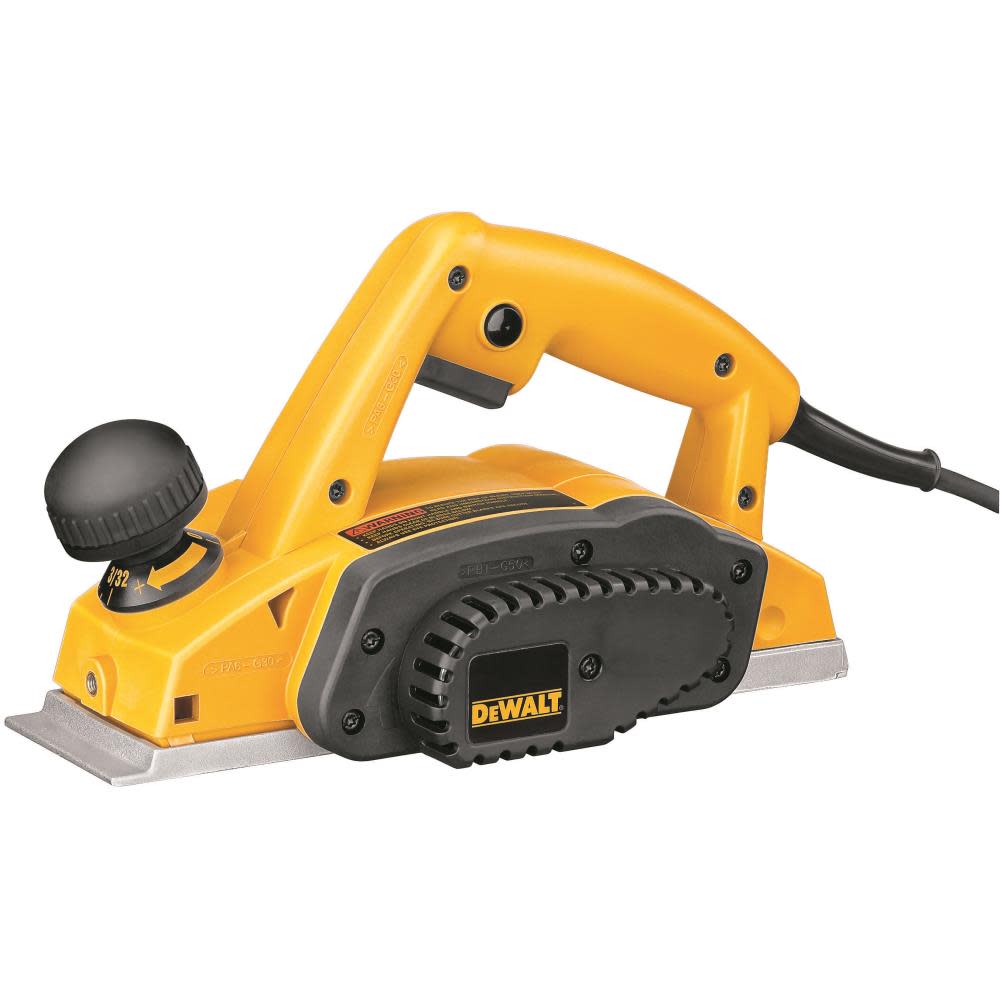

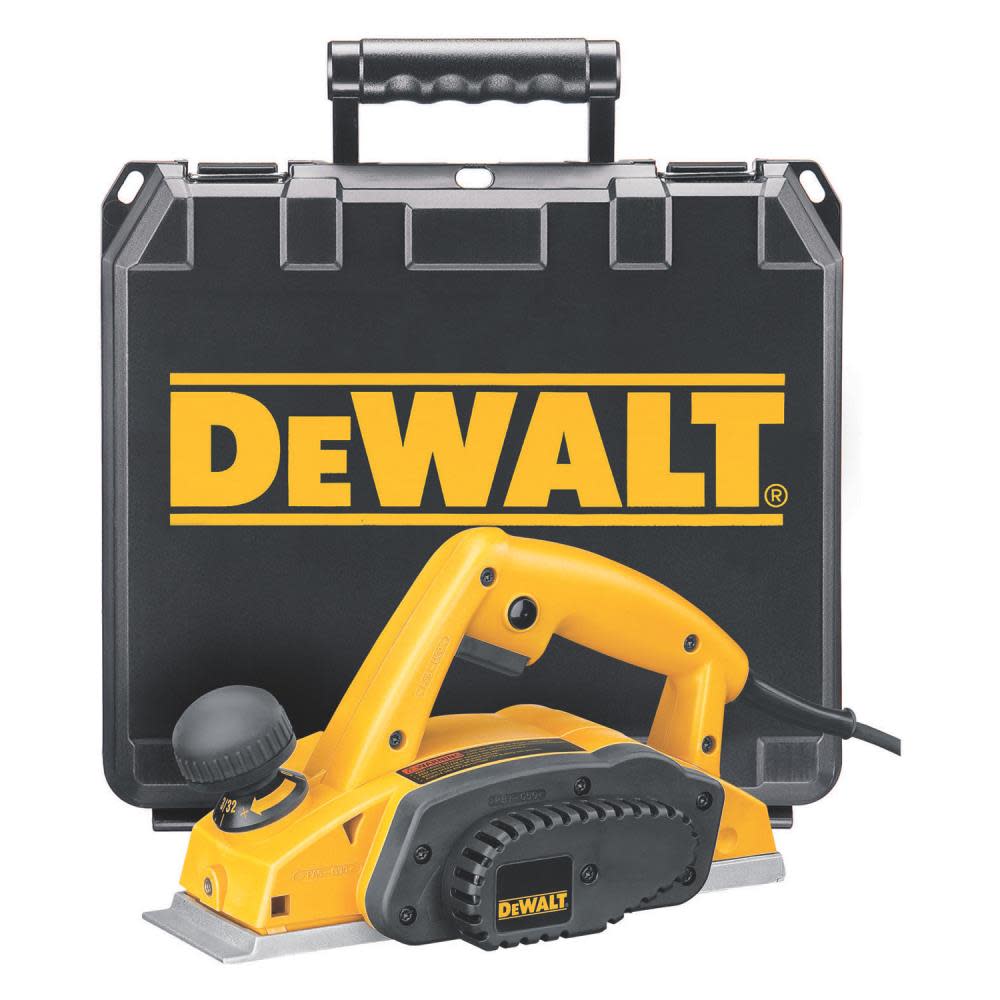

3-1/4 In. Planer Kit with 3/32 In. Depth of Cut
Precision machining, resharpen able high speed steel blades, and a powerful 7.0 amp motor make this hand planer kit the easy and accurate alternative to using standard hand planers for material removal.
Features
Heavy-duty 7.0 amp motor provides a smooth, even finish in the hardest of woods
3/32 In. (2.5 mm) maximum cut in one pass reduces the amount of passes on your material
Accepts large resharpen able high speed steel blades for straight edging or framing applications
Calibrated depth adjustment knob for accurate depth setting and eliminating the need to re-zero your depth
Also accepts reversible carbide blades for more detailed, accurate woodworking
Precision-machined shoe bottom and side provides flat surface finish as well as accurate and square rabbet joints
Kickstand allows you to rest the planer on the material in between passes without gouging your material
Rubber-coated front-height adjustment knob for greater comfort and better control
Three precision-machined grooves in front shoe provide three different sizes for edge chamfering
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DW680K
Amperage (A)
7.0
Assembled Weight (lbs)
6.2
Blade Count
2
Blade Type
Reversible Carbide
California Proposition 65 Warning Required
Yes
Case Included
Yes
Color / Finish
DEWALT® Yellow and Black
Cord Length (ft)
8.0
Cordless / Corded
Corded
Country of Origin
Czech Republic
Cuts Per Minute
34000
Depth Of Cut Range
3/32
ETL Listed
No
Fence Included
Yes
Height (in)
9.843
Housing Material
Plastic
Integrated Chip Management
No
Internal Supplier Part #
DW680K
Internet Product Code (IPC)
3058698B287
Length (in)
11.0
Lock-on Switch
Yes
Manufacturer Warranty
Limited 3 Year Warranty / 1 Year Free Service Contract / 90 Day Money Back Guarantee
Maximum Cutting Depth (in)
0.09375
Maximum RPM
15000.0
Maximum Width Cutting Capacity (in)
3 1/4 in
Motor Horsepower (hp)
Universal Motor
Package Weight
12.0
Package Weight (lbs)
12
Powered Tool Power Source
Electric – Corded
Shoe Length (in)
11.4173
Switch Type
Trigger
UL Listed
No
Variable Speed
No
Voltage
110.0
Voltage (V)
110.0
Weight (lbs)
6.2
Width (in)
3.25
