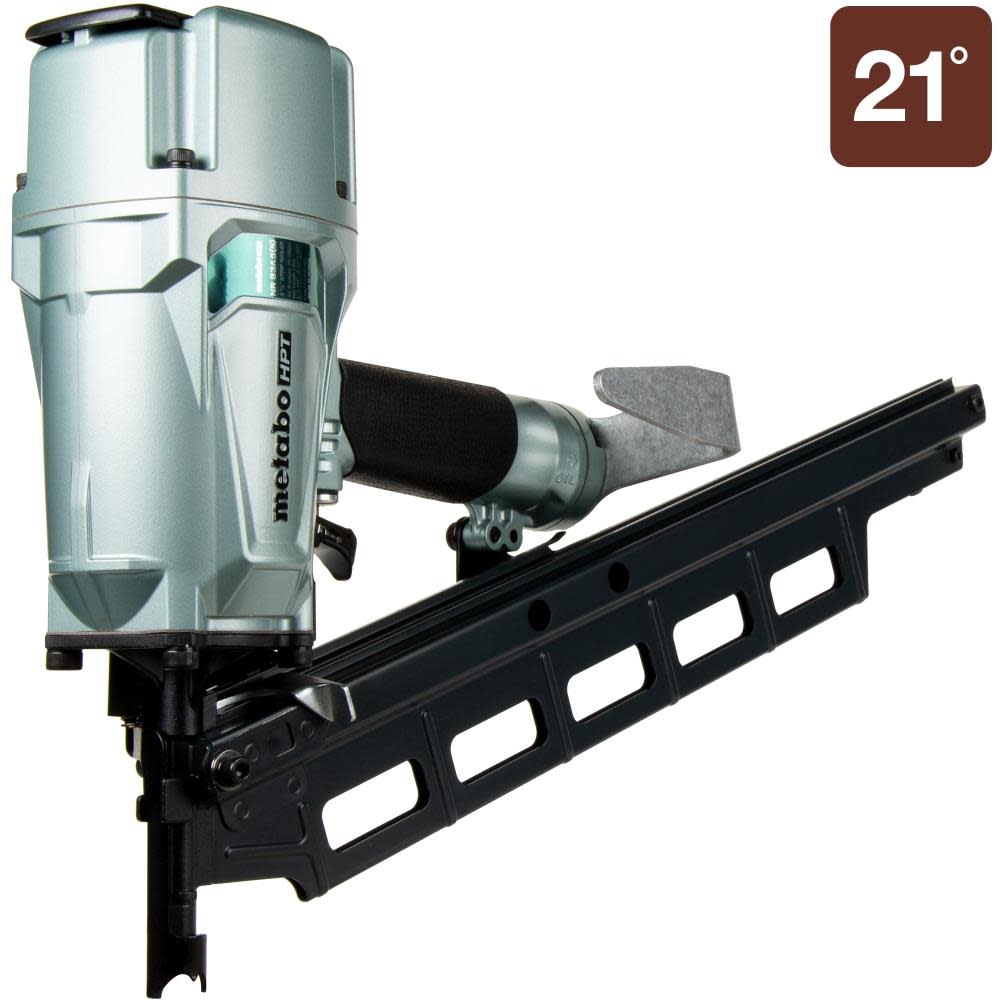

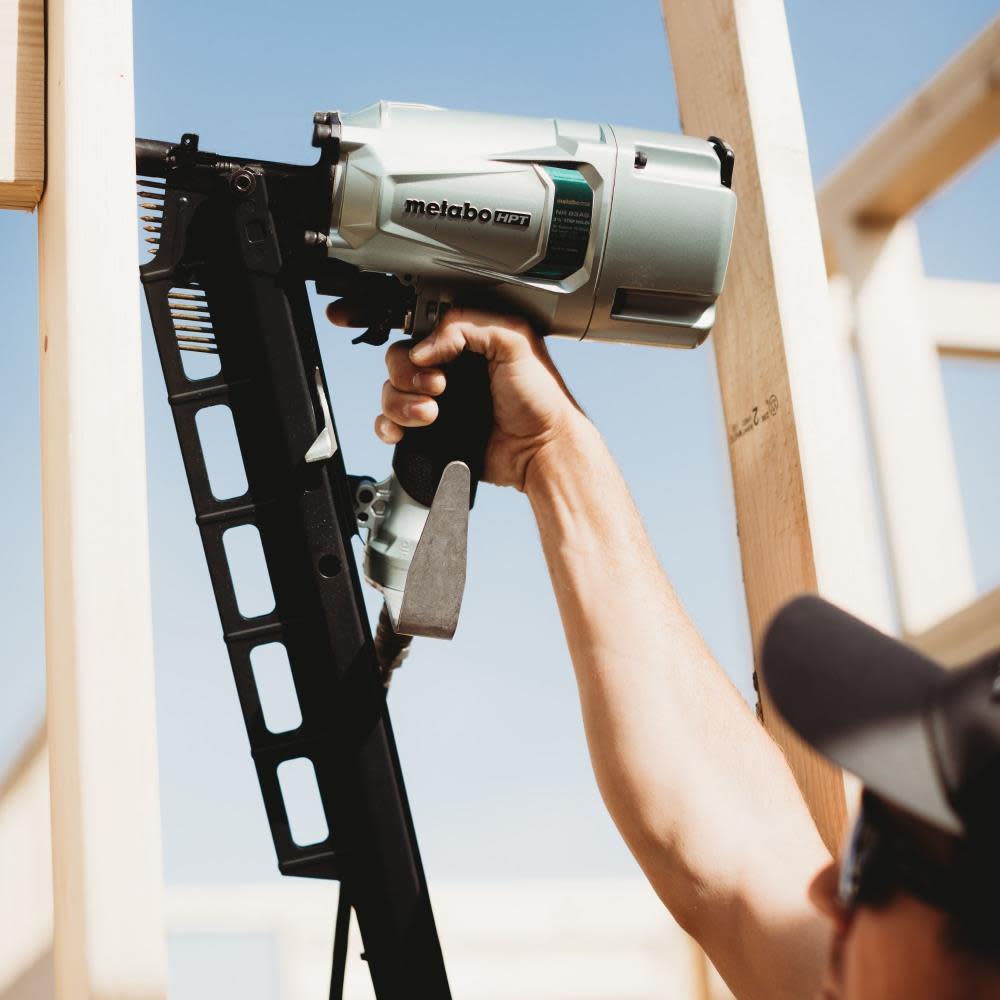

3-1/4″ Round Head Framing Pneumatic Nailer
Sometimes in order to make things better you need to take them back to their original design. With that being said here we have the all new and at the same time like the original NR83A5. The NR83A5(S)M has the same legendary durability and reliability you have come to trust with MetaboHPT, but now with an improved trigger design and sharing all the same motor parts as the original NR83A5. (or original tool from the late 80’s. With the power to drive 2 In. – 3-1/4 In. Nails into even the toughest materials there is no job this tool can’t handle. With the selective actuation now on the trigger we not only reduced the total number of parts in the trigger but also eliminated all composite parts.
Features
TECHNOLOGY: Experience quick response and rapid, powerful driving with the Metabo HPT cylinder valve drive mechanism

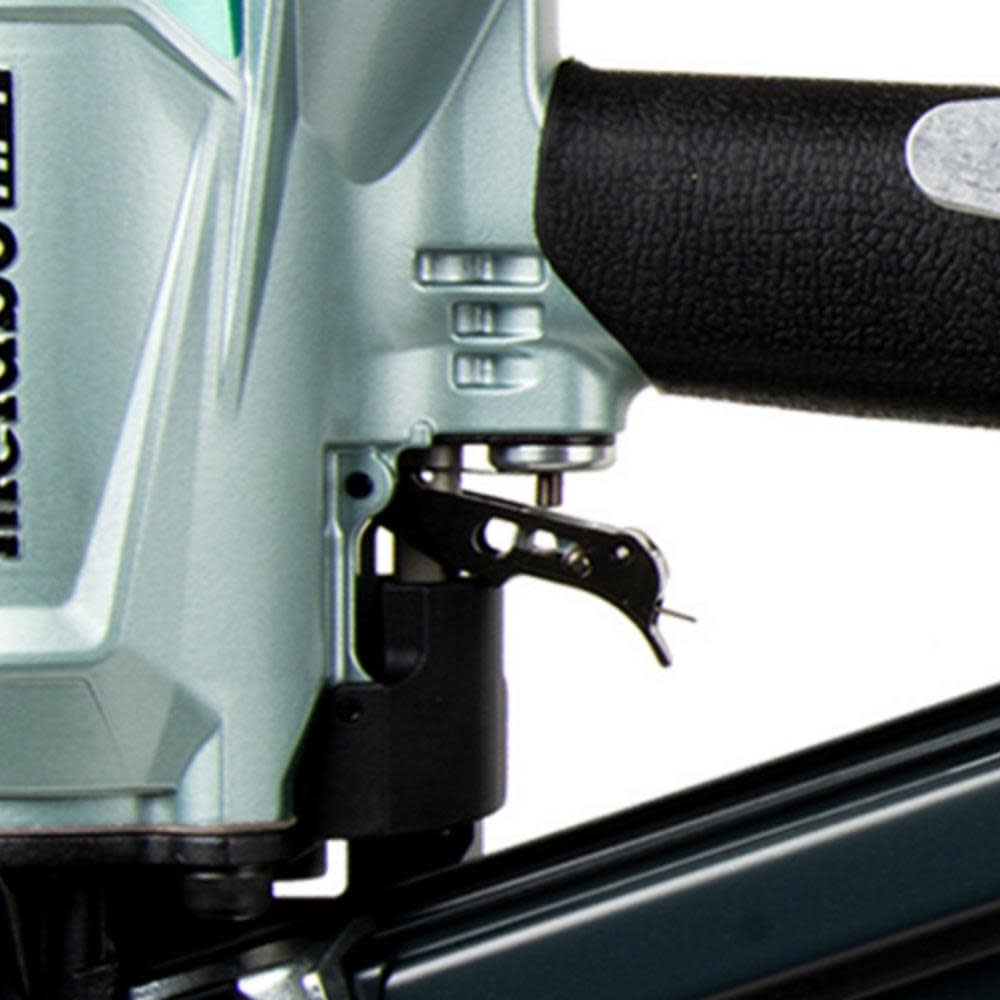

TRIGGER: Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger
RAFTER HOOK: Can be positioned on left or right side depending on user preference
EASY LOAD: Rear loading magazine for quick replenishments
FASTENERS: 2-In to 3-1/4 In 21 degree nails
GUARANTEE: 30-Day guarantee
RUBBER GRIP: Provides for superior control and comfort during use
Hardened claw tip resists wear and grips wood for driving nails at different angles

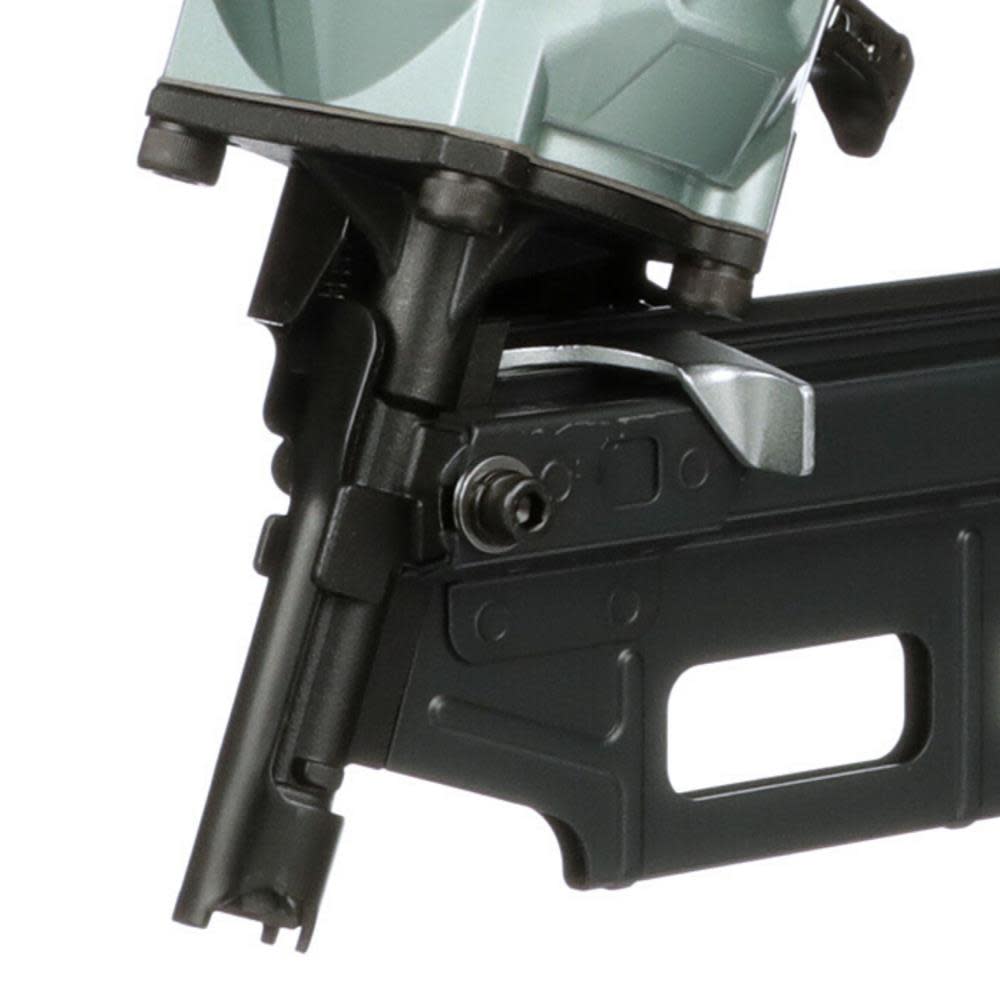

OPEN NOSE: Open nose design for easy extraction should a nail jam
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
NR83A5(S)M
Air Inlet Size (in)
0.375
ANSI Safety Listing
Yes
Assembled Weight (lbs)
9.1
California Proposition 65 Warning Required
Yes
Case Included
No
Color / Finish
Metabo HPT green and black
Cordless / Corded
Corded
Country of Origin
Switzerland
Depth Control
N/A
Fastener Format
Strip
Fastener Gauge Range
N/A
Fastener Length Range
2″ to 3-1/4″
Fasteners Used
2-in to 3 1/4-in Framing Nails
Height (in)
13.375
Housing Material
Aluminum
Internal Supplier Part #
NR83A5(S)M
Internet Product Code (IPC)
D423C8E9DAE
Length (in)
21.8125
Magazine Capacity
64
Manufacturer Warranty
5 Year
Nailer / Stapler Design
Nailer
Nailer / Stapler Power
Pneumatic
Net Tool Weight (lbs)
9.1
Operating Pressure
70
Package Depth
22.95
Package Height
5.12
Package Weight
11.5
Package Weight (lbs)
11.5
Pneumatic Nailer Type
Framing
Powered Tool Power Source
Pneumatic
