Description
Description

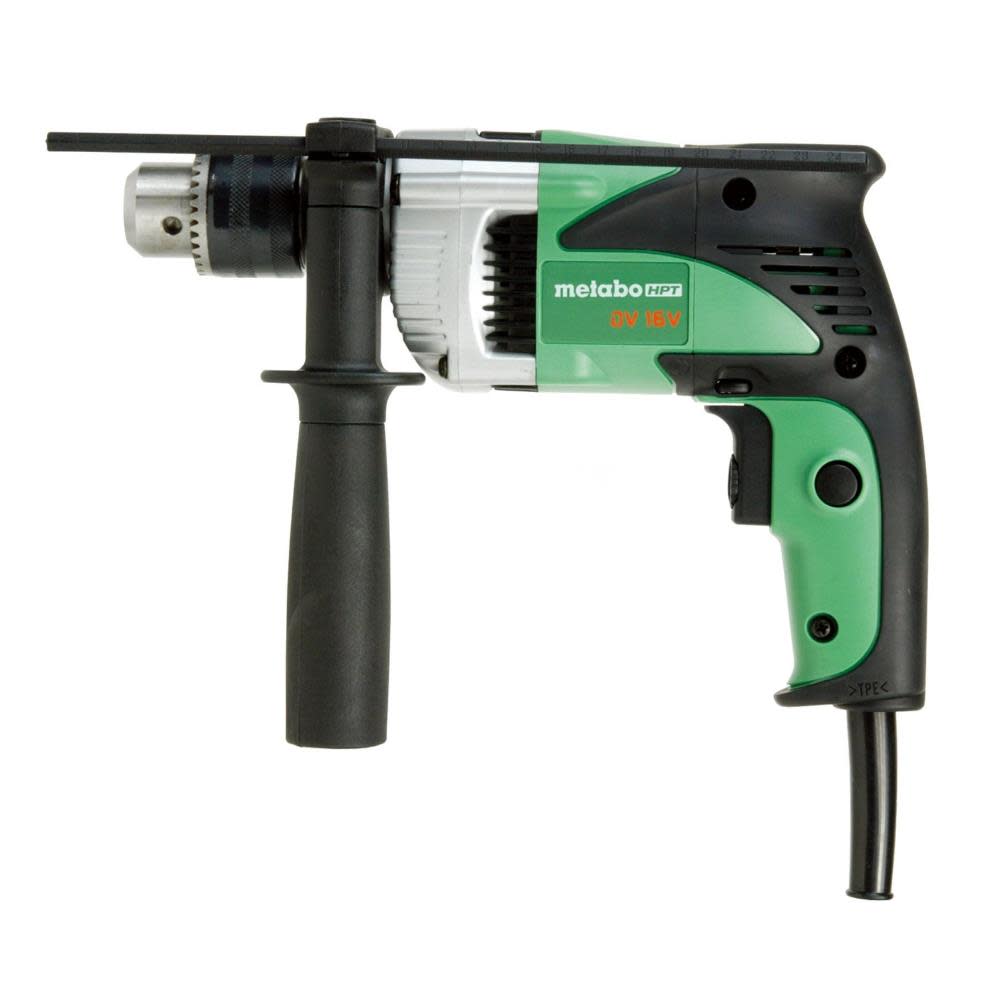

5/8 Inch 6-Amp Hammer Drill, 2-Modes, VSR | DV16V
The 5/8 Inch Hammer Drill (DV16V) is designed compact, lightweight and durable. It drills easily into concrete, brick, ceramic tile, marble, granite and other stone materials. It also drills easily into metal, wood and plastic using the “drill only” function.
Features
MOTOR: 6-Amp motor, heavy-duty power that makes quick work of tough jobs
CHUCK: 1/2 inch industrial grade chuck, offers a variety of bit choices
LIGHTWEIGHT: At only 3.7lbs and 10-19/32 inches long, one of the most compact and lightweight hammer drills in its class
POWERFUL: No-load speed of 0-2,900 RPM (best in class)
GEAR COVER: One-piece cylindrical housing and aluminum die-cast inner cover and gear cover make this tool far more durable than competitors models
SPEED CONTROL: Variable speed control dial, for ease during high-speed or high-torque jobs
TRIGGER: Oversize trigger switch with reverse, allows for better control and quick removal from materials
GRIP: Elastomer, non-slip grip, designed to comfortably fit in hand and reduce vibration
ACCESSORIES: Removable side handle with depth gauge, improves control and ensures accurate drilling depth for anchoring
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
DV16VM
Amperage (A)
6
Assembled Weight (lbs)
4.0
California Proposition 65 Warning Required
Yes
Case Included
Yes
Chuck Design
Keyed
Chuck Size
1/2 In
Color / Finish
MetaboHPT Green and black
Cordless / Corded
Corded
Country of Origin
United States
CSA Certified
Yes
Drill / Driver Maximum RPM
2900
Drill Amperage (A)
6
Drill Type
Hammer Drill
ETL Listed
Yes
Handle Type
Pistol
Housing Material
Polycarbonate resin
Impacts per Minute
46400
Integrated Light
No
Internal Supplier Part #
DV16VM
Internet Product Code (IPC)
3168003084A
Length (in)
10.5
Lock-on Switch
Yes
Manufacturer Warranty
1 Year Warranty
Maximum RPM
2900
Net Tool Weight (lbs)
3.7
Number of Hammer Settings
1
Package Contents
Case
Package Depth
4.3
Package Height
13.3
Package Weight
8.4
Package Weight (lbs)
8.4
Powered Tool Power Source
Electric – Corded
Reverse
Yes
Side Handle
Yes
Tool Handle Type
Pistol
UL Listed
Yes
Variable Speed
No
Voltage
120
Voltage (V)
120
Width (in)
2
