Description
Description

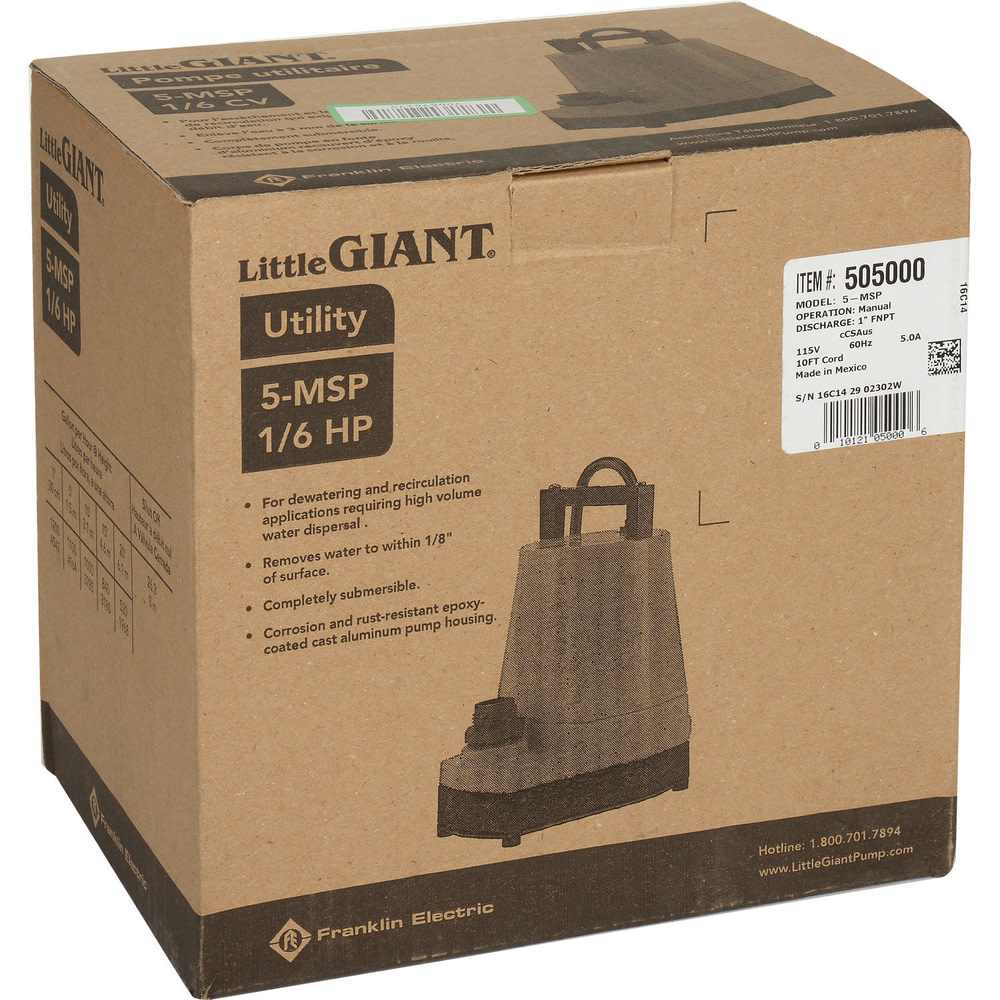

5-MSP 1/6HP, 115V Submersible Utility Pump, 10′ Cord
The Little Giant 5 Series Submersible Utility pumps are perfect for commercial, industrial, and home uses where water must be transferred or recirculated. Whether it’s for dewatering a waterbed or a storm cellar, circulating water for welding and pipe threading machines, pumping mild chemicals such as soaps or fertilizers, or meeting the highly specialized applications found in pressure-washers and carpet-cleaners, Little Giant’s general purpose utility pumps are the true generals of efficiency and reliability.
Features
10′ Cord
1/6 hp shaded pole motor with overload protection
Designed for continuous duty
Pumps down to 1/8″ (3.2 mm)
1″ FNPT (25.4 mm) discharge (includes garden hose adapter)
Removable inlet screen for easy cleaning
Manual Power Switch
120 °F (49 °C) liquid temperature rating
Specifications
Acme Tools Brand Name
LITTLE GIANT PUMP
Acme Tools Part Number
505000
Amperage (A)
6.4
Assembled Depth (in)
6.12
Assembled Height (in)
7.78
Assembled Weight (lbs)
8.25
Assembled Width (in)
4.13
Battery Backup
No
California Proposition 65 Warning Required
Yes
Cord Length (ft)
10
Country of Origin
Mexico
Float Switch
No
Gallons Per Hour (gal)
1200
Height (in)
7.78
Horsepower (hp)
1/6
Housing Material
Epoxy-coated cast aluminum
Impeller
Semi-open
Impeller Material
Nylon
Inlet Connection
Bottom Feed
Inlet Size (in)
6
Materials Handled
Water
Maximum Pumping Height (Ft.)
26.2
Motor Housing
Other
Outlet Connection
1″ FNPT
Outlet Size (in)
1″ FNPT
Package Contents
Little Giant 505000 5-MSP 1/6 Horsepower 115V Submersible Utility Pump, Owners Manual, Garden Hose adaptor
Package Depth
11.4
Package Height
14.6
Package Weight
21.58
Package Weight (lbs)
9.25
Pump Body Material
Epoxy Coated Cast Aluminum
Pump Category
Utility
Pump Construction
Aluminum
Pump Motor Type
1/6 hp shaded pole motor with overload protection
Pump Switch Type
Switchless
Shut Off PSI
11.4
Submersible
Yes
Sump Type
Submersible
Switch Type
Manual
Voltage
115 Volts
Water Flow
1200 GPH @ 1′, 1170 GPH @ 3′, 1100 GPH @ 5′, 1000 GPH @ 10′, and 520 GPH @ 20′
Weather Resistant
Yes
