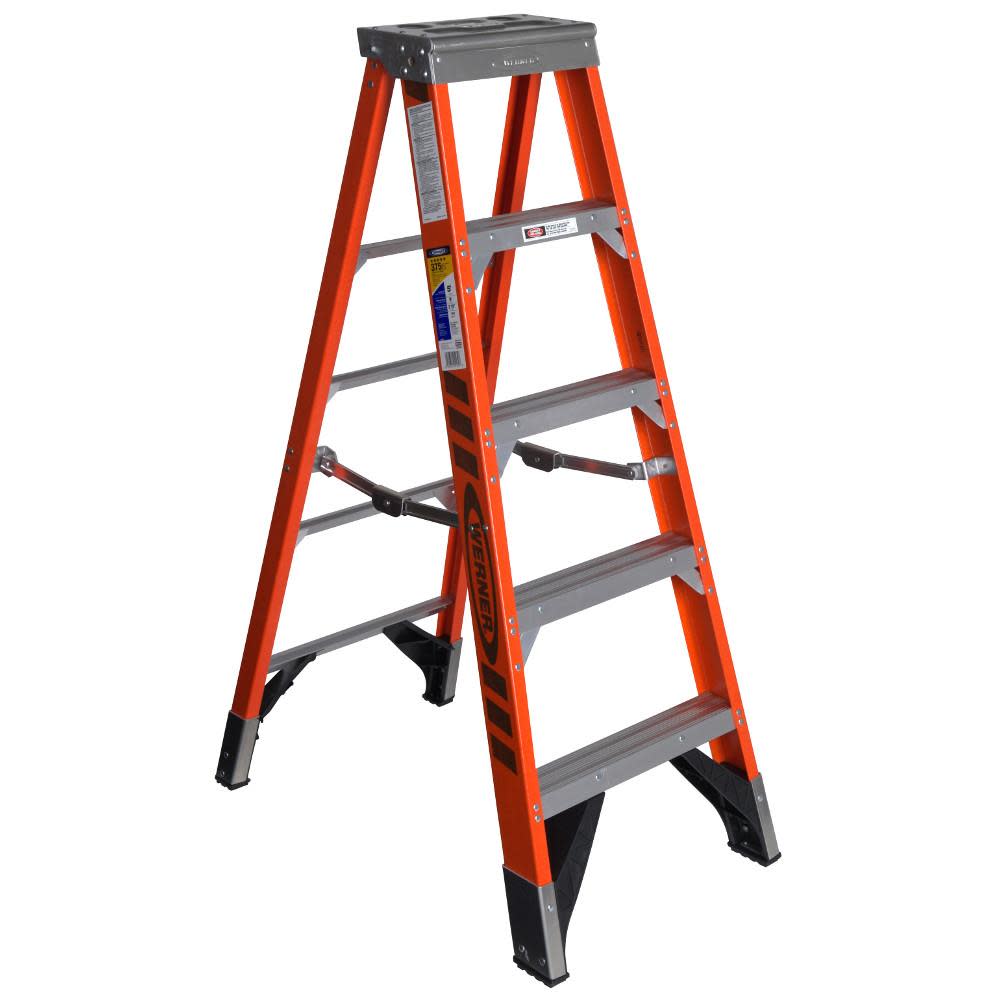

5ft Type IAA Fiberglass Step Ladder 7404
Stepladder provides extra heavy duty aluminum HolsterTop® to hold everything you need to get the job done.
Features
Extra heavy duty aluminum HolsterTop® with thick side plates
Back-up plates reinforce all top connectors
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
Slip-resistant Traction-Tred® steps are double riveted and have extra wide knee braces
Full set of rear horizontals are knee braced and spaced one per foot

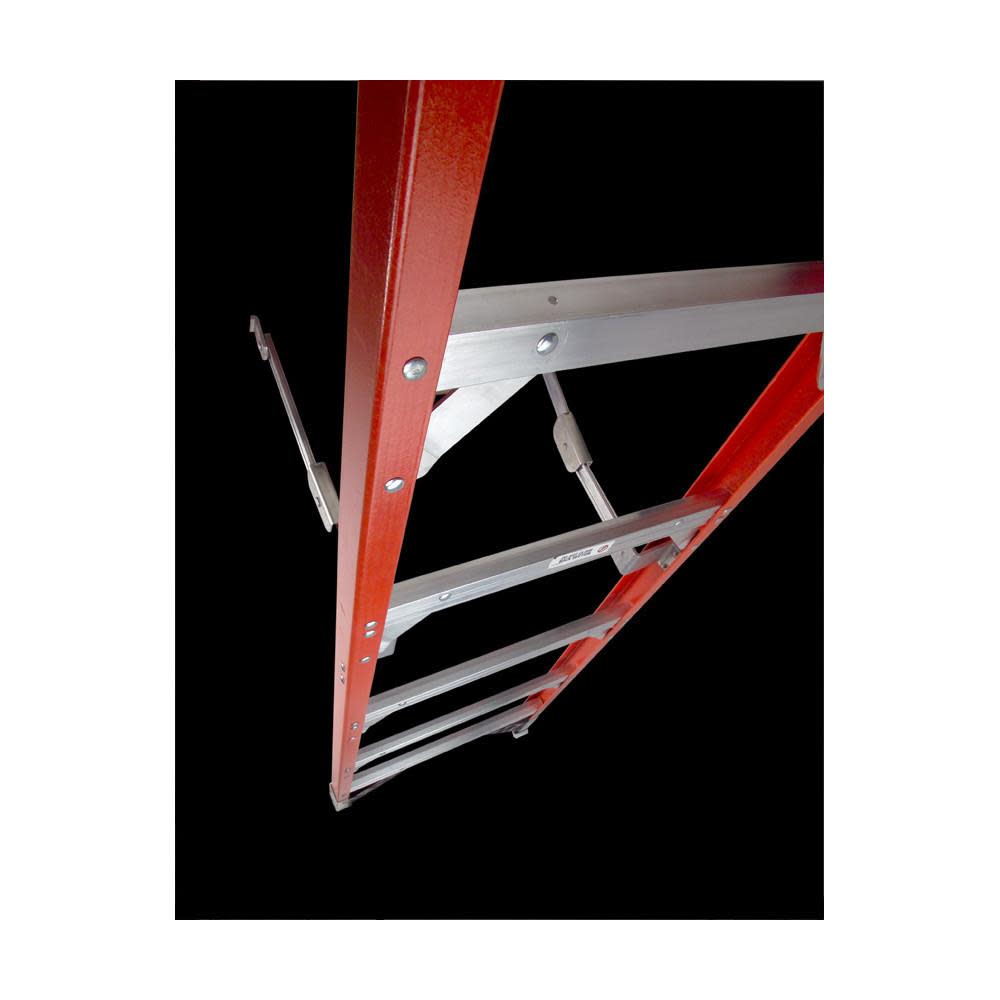

Extra heavy duty internal aluminum spreaders

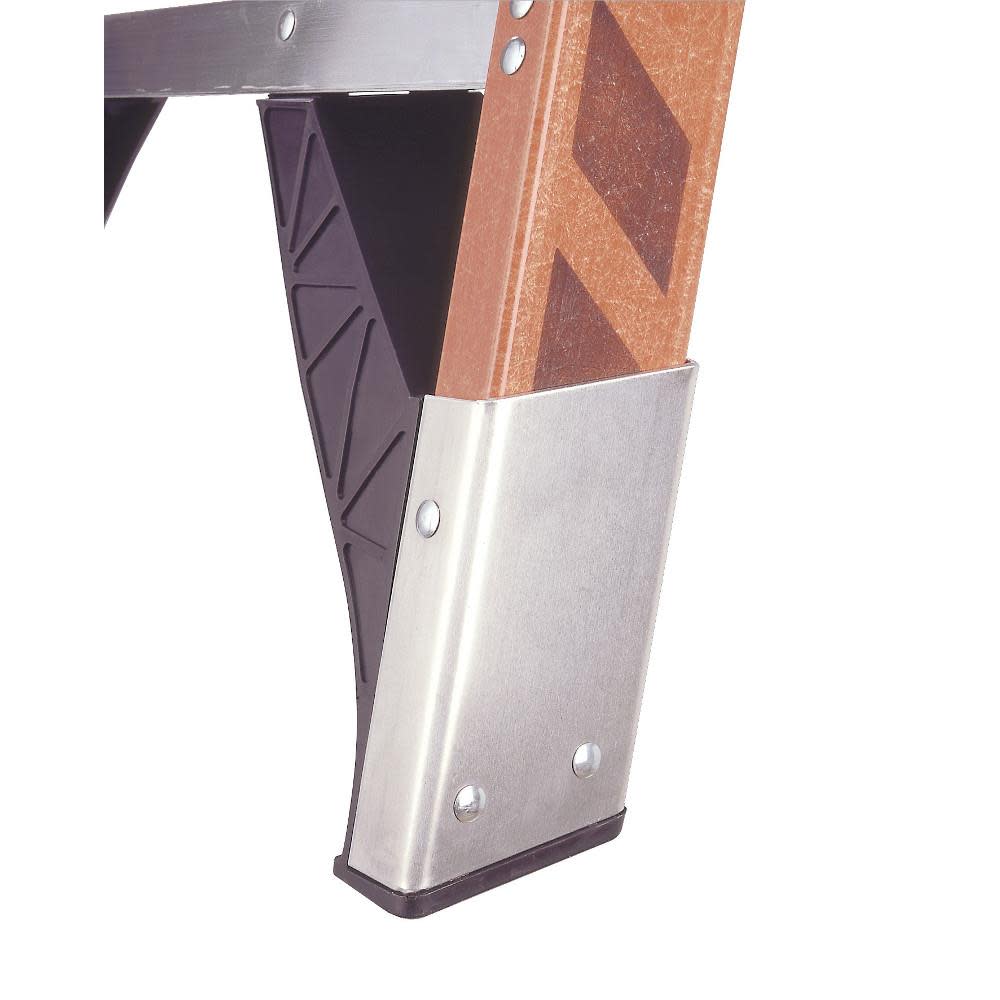

Aluminum external rail shield helps protect against abrasion damage
GLASMARK Violator stripes on rails allow ladder to be more visible

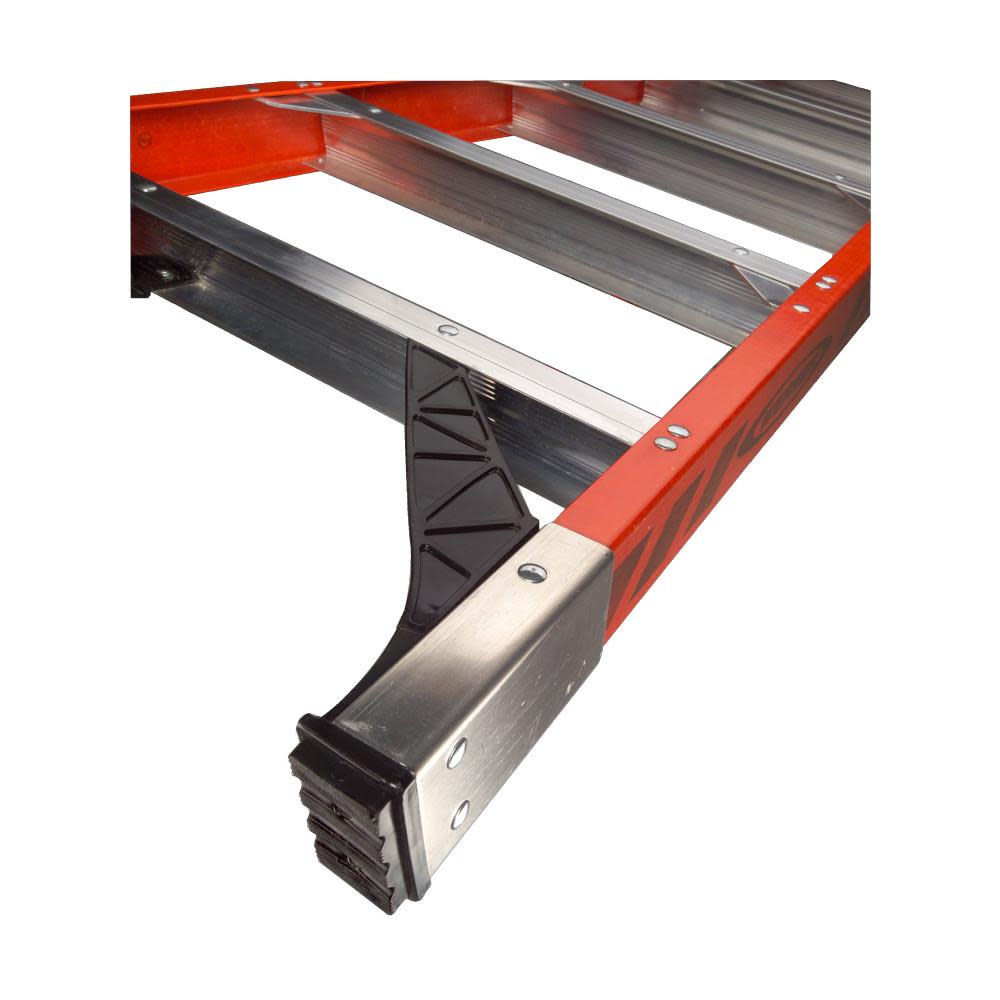

Slip-resistant foot pads attached to the EDGE® structure
Specifications
Acme Tools Brand Name
WERNER
Acme Tools Part Number
7405W
ANSI Approved
Yes
ANSI Ladder Rating
Type IAA
Assembled Weight (lbs)
20.0
Base Spread (in)
36.75
Base Width (in)
23.25
California Proposition 65 Warning Required
No
Country of Origin
China
CSA Certified
No
Distance Between Rung/Steps (in)
12.0
Duty Rating (lbs)
375.0
Internal Supplier Part #
7405
Internet Product Code (IPC)
D7B04C9B23F
Ladder Length (ft)
5.0
Ladder Material
Fiberglass
Ladder Type
Step
Manufacturer Warranty
None
Meets ANSI or OSHA Standards
Yes
Number of Steps
4
OSHA Approved
Yes
Package Depth
7.2
Package Height
60
Package Weight
20
Package Weight (lbs)
20
Rung/Step Depth (in)
3.0
Weight (lbs)
20.0
