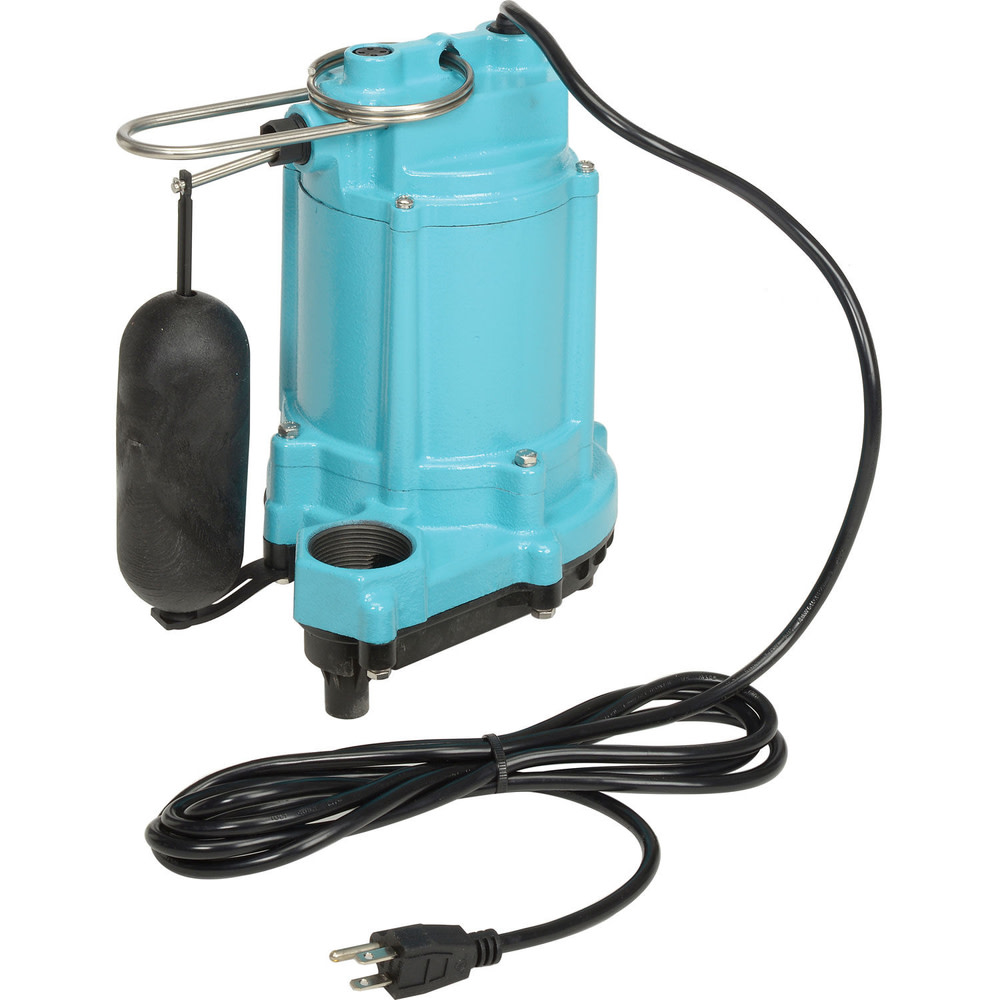

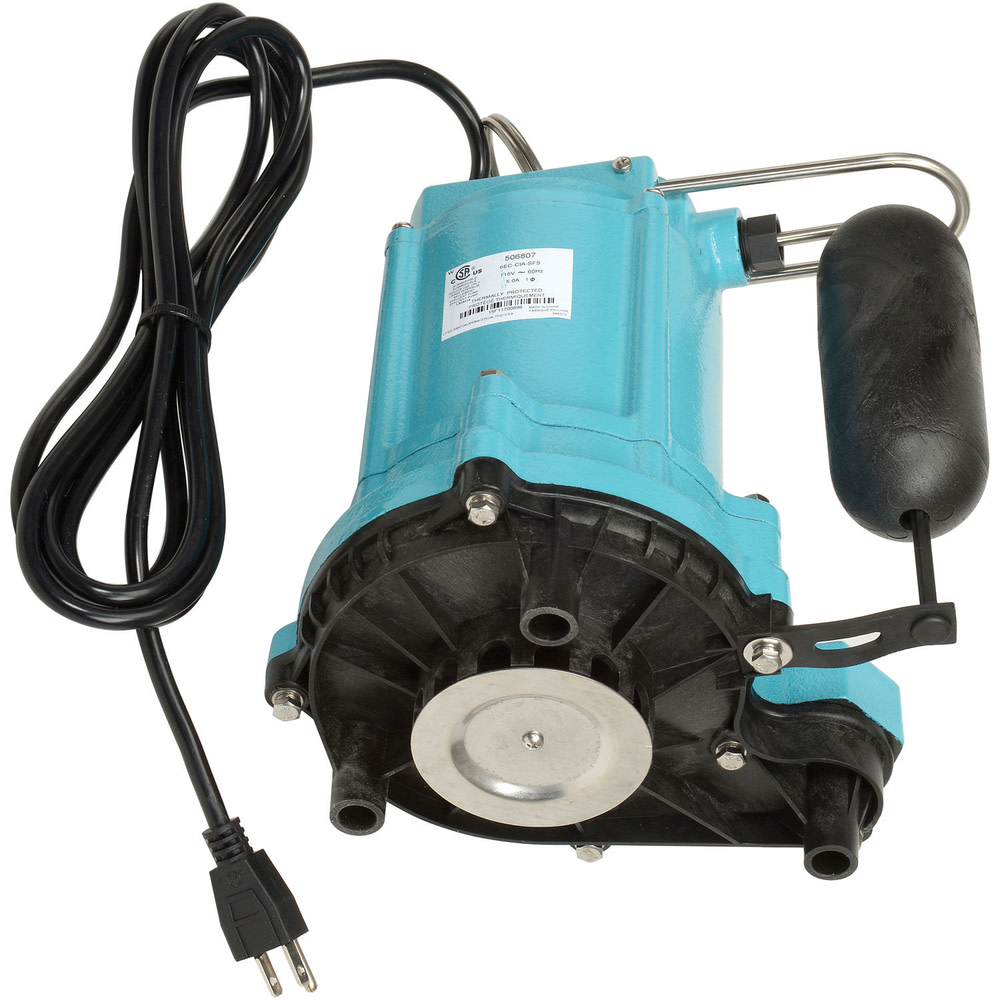

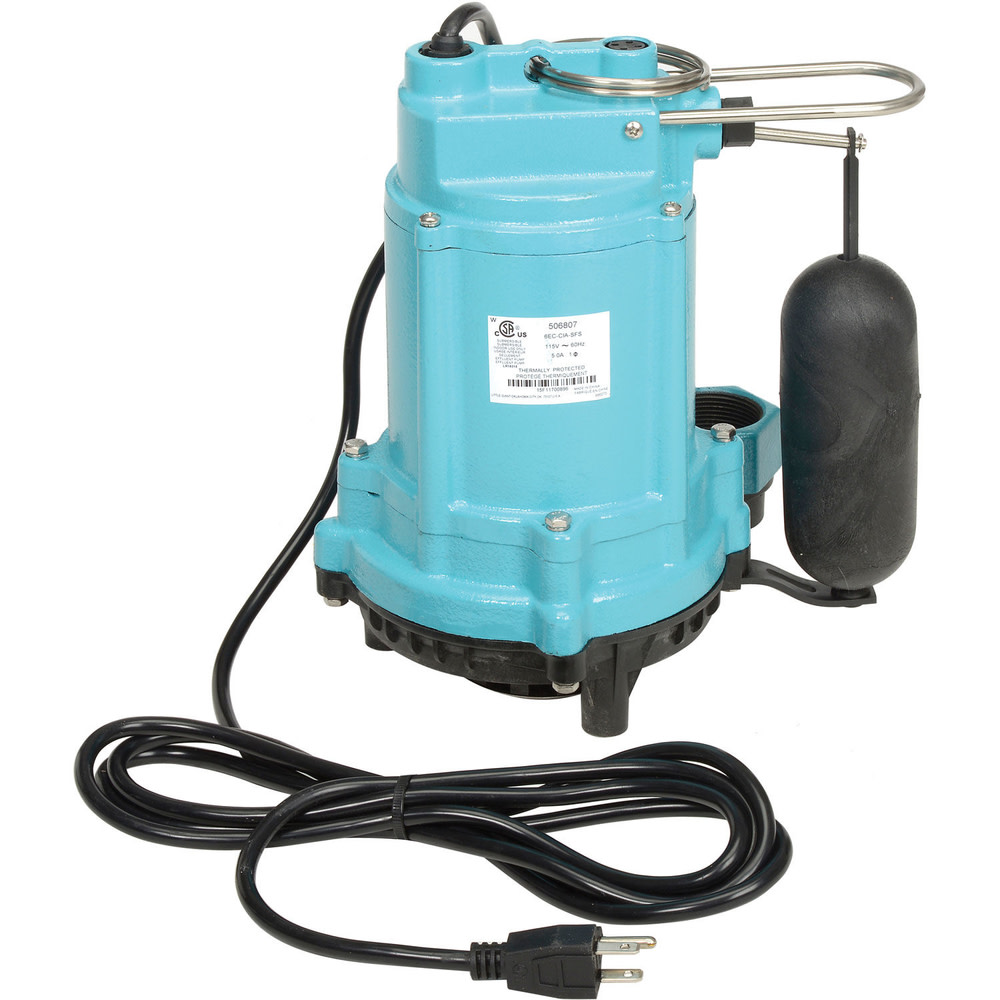

6EC-CIA-SFS, 1/3HP 115V Automatic Submersible Utility Pump, 10′ Cord
The Little GIANT 6EC Series submersible pump is for use in basins or lift stations and is suitable for pumping Light Effluent (Grey Water). Built on the industry’s best 6E platform, the 1/3 hp 6EC series consumes only 5.0 amps while producing 50 GPM @ 10 ft. of head and reaching a maximum shut off of 28 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
Heavy-duty polypropylene construction
Permanent split capacitor (PSC) motor with thermal overload protection
Designed for continuous duty
Energy-saving low amp draw
Cooler running motor
1-1/2″ FNPT discharge (38 mm)
Handles up to 1/2″ (12.7 mm) solids
Integral Snap-Action Float Switch
10′ Power cord
Specifications
Acme Tools Brand Name
LITTLE GIANT PUMP
Acme Tools Part Number
506807
Amperage (A)
5
Assembled Depth (in)
8.48
Assembled Height (in)
11.28
Assembled Weight (lbs)
28
Assembled Width (in)
10.66
Battery Backup
No
California Proposition 65 Warning Required
Yes
Cord Length (ft)
10
Country of Origin
Mexico
Float Switch
Yes
Gallons Per Hour (gal)
3000
Height (in)
11.28
Horsepower (hp)
1/3
Housing Material
Polypropylene
Impeller Material
Nylon
Inlet Size (in)
4
Materials Handled
Water, Grey Water
Maximum Pumping Height (Ft.)
28
Motor Housing
Other
On / Off Points
Off 2″- 5″ x On 8″- 11″
Outlet Connection
1-1/2″ FNPT discharge (38 mm)
Outlet Size (in)
1-1/2
Package Contents
Little GIANT 6EC-CIA-SFS with 10′ Cord, Owner’s Manual
Package Depth
18
Package Height
12
Package Weight
16.1
Package Weight (lbs)
29
Pump Body Material
Polypropylene
Pump Category
Sewage
Pump Construction
Plastic
Pump Motor Type
Permanent split capacitor (PSC) motor with thermal overload protection
Pump Switch Type
Specialty
Shut Off PSI
12.1
Submersible
Yes
Sump Type
Pedestal
Switch Type
Integral Snap-Action Float
Voltage
115 Volts
Water Flow
53 GPM @ 5′, 50 GPM @ 10′, 42 GPM @ 15′, and 34 GPM @ 20′
Weather Resistant
Yes
