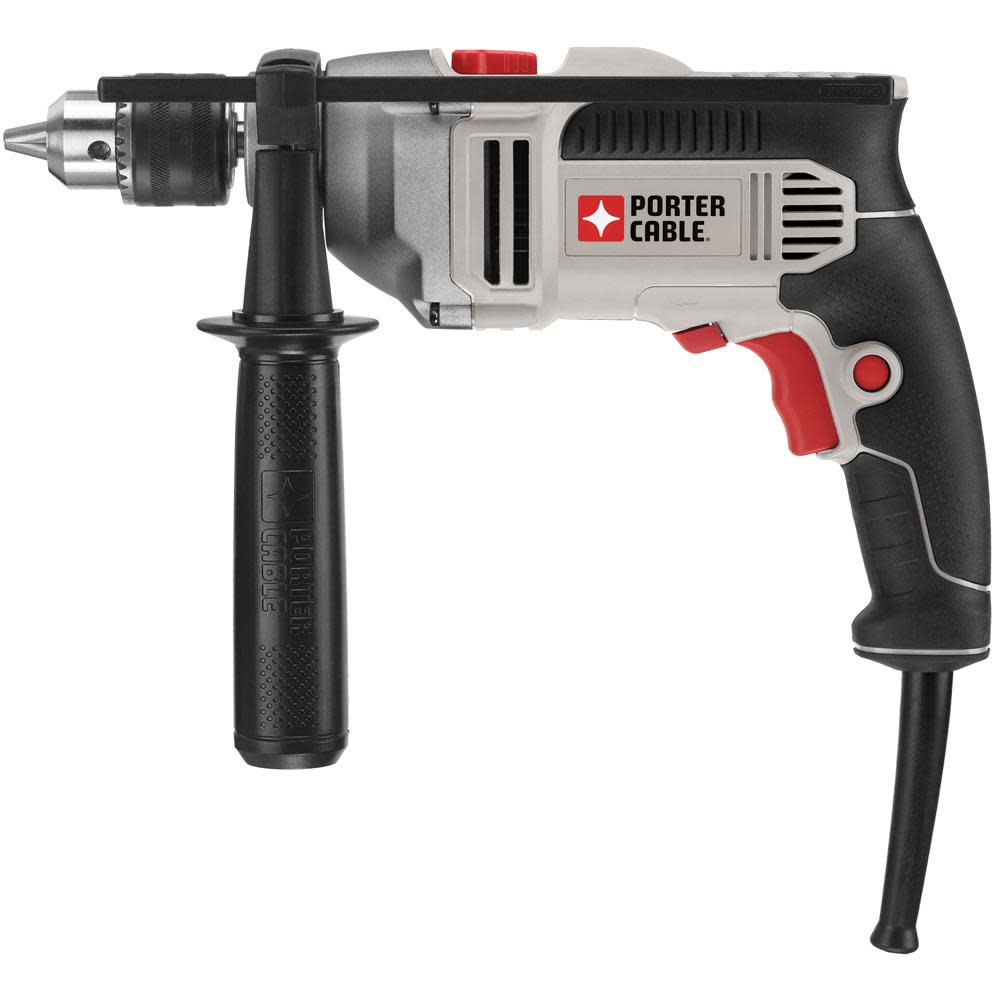

7 Amp 1/2-in CSR Single Speed Hammer Drill
When you need power and durability in tough drilling applications, this 7-amp hammer drill is for you. Tackle materials such as metal and wood while in drill mode, and switch to hammer drill mode for the versatility to bore holes in brick, block and other masonry materials. Harder materials are no match for the 52,700-BPM impact mechanism, and the 1/2-in keyed chuck provides increased bit retention in heavy-duty applications. A side handle allows for more control in tougher applications, and the 2-finger locking trigger is ideal during extended use. The streamlined design and over-molded body and handle increase comfort and reduce user fatigue.
Features
7-amp hammer drill for metal, wood and masonry applications
1/2-in keyed chuck provides strong bit retention
2-finger locking trigger (3,100-RPM) provides ease of use during extended tasks
Streamlined over-molded handle reduces user fatigue and increases comfort, while side handle provides more control in heavy applications or bind-up situations
6-ft cord
3-year base warranty
52,700-BPM is ideal for drilling into concrete, brick, block and other masonry
Cast-metal gear housing dissipates heat and adds durability
3-year limited warranty
Specifications
Acme Tools Brand Name
PORTER CABLE
Acme Tools Part Number
PCE141
Amperage (A)
7
Assembled Weight (lbs)
4.5
California Proposition 65 Warning Required
Yes
Case Included
No
Chuck Design
Keyed
Chuck Size
1/2 In
Color / Finish
Red/Grey
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Drill / Driver Maximum RPM
3100
Drill Amperage (A)
7
Drill Type
Hammer Drill
ETL Listed
No
Handle Type
Pistol
Housing Material
Plastic
Impacts per Minute
52700.0
Integrated Light
No
Internal Supplier Part #
PCE141
Internet Product Code (IPC)
76E733526AA
Length (in)
12.25
Lock-on Switch
No
Manufacturer Warranty
90 day money back guarantee/1 year free service contract/3 year limited warranty
Maximum RPM
3100
Maximum Torque (ft-lbs)
0.0
Net Tool Weight (lbs)
4.5
Number of Hammer Settings
1
Package Contents
(1) Hammerdrill; (1) Side Handle; (1) Depth Rod; (1) Chuck Key and Holder
Package Weight
5.2
Package Weight (lbs)
5.2
Powered Tool Power Source
Electric – Corded
Reverse
Yes
Side Handle
Yes
Switch Type
Trigger
Tool Handle Type
Pistol
UL Listed
No
Variable Speed
Yes
Voltage
120.0
Voltage (V)
120.0
Width (in)
3.25
