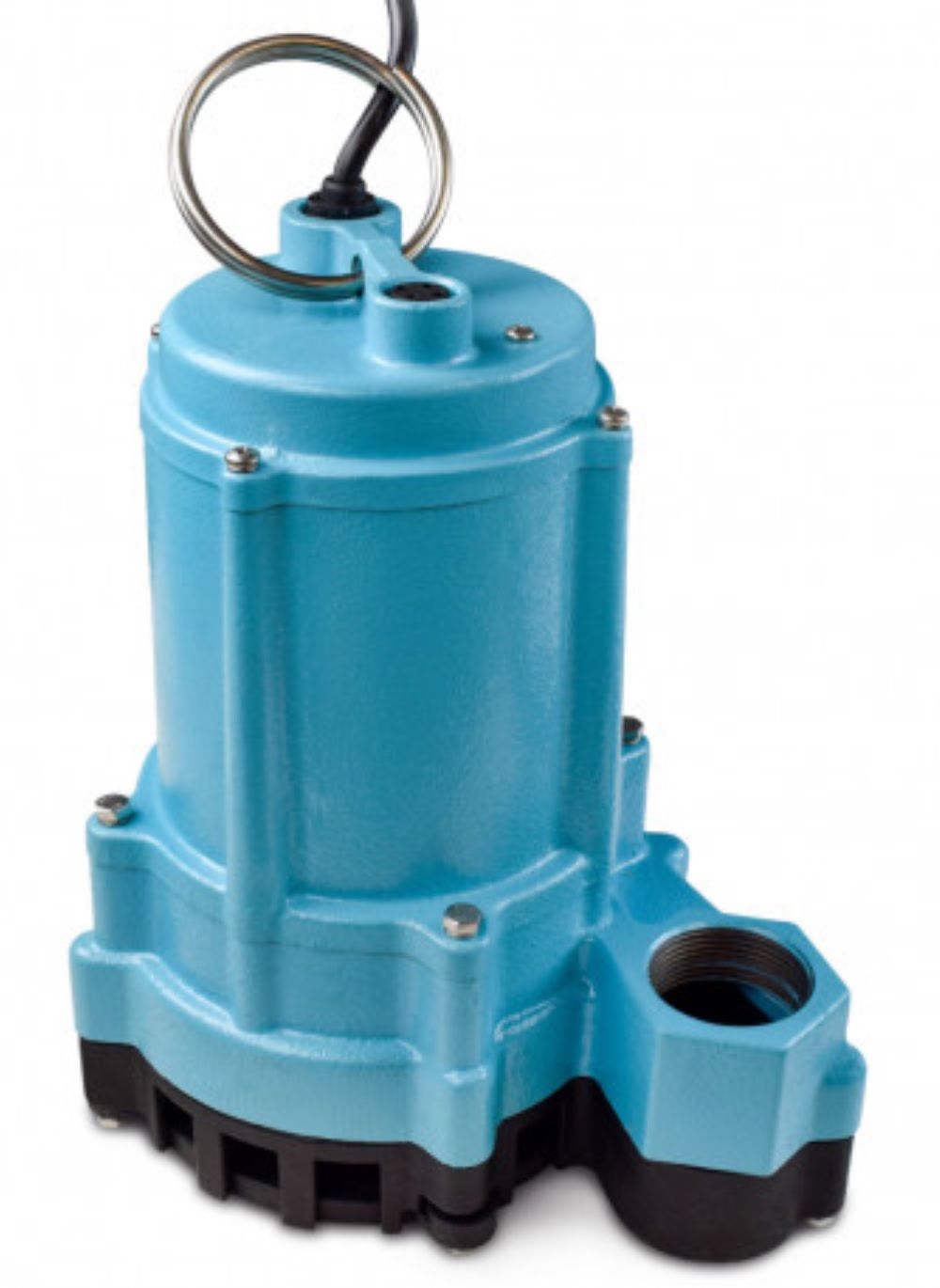

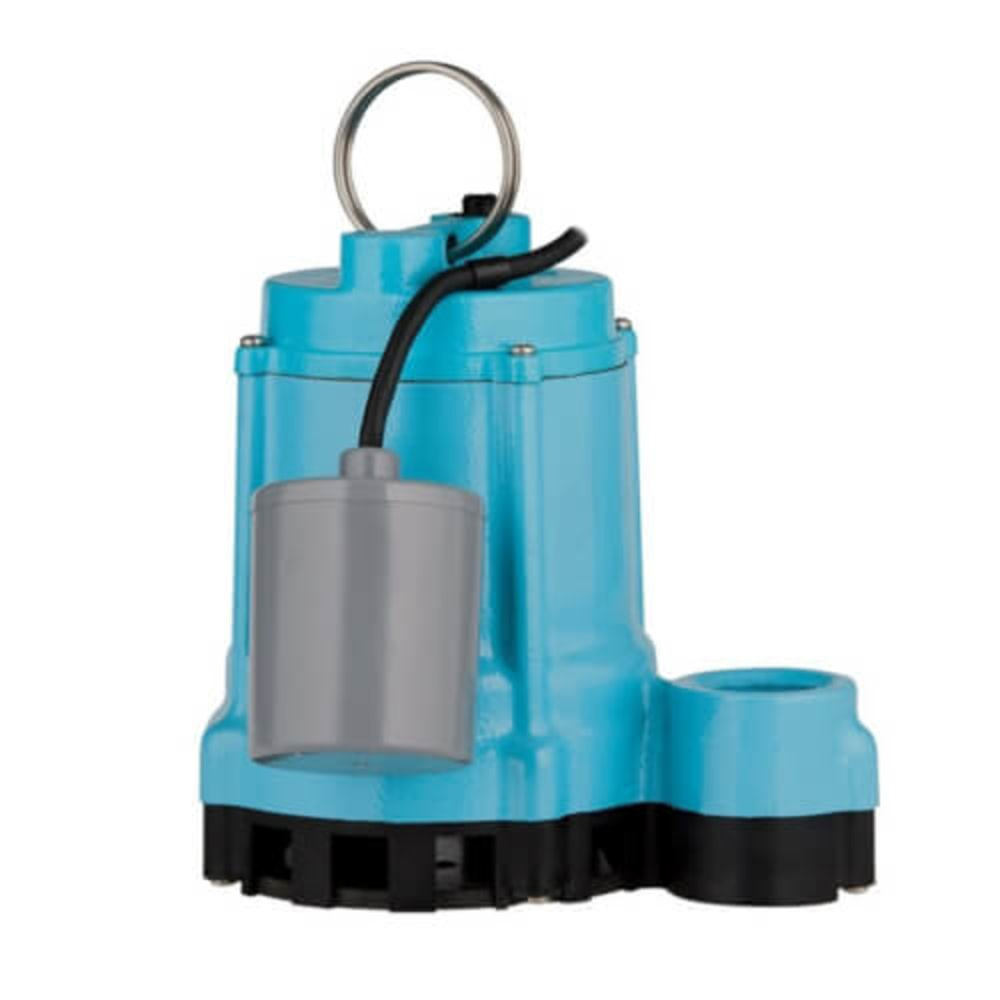

9EC-CIM Eliminator Series 4/10 HP 115V Effluent Dewatering Pump
Little Giant 9EC-CIM “Eliminator” series pumps are designed for a wide range of residential, commercial, industrial and agricultural applications with low to medium effluent waste and wastewater transfer demand. A powerful 4/10HP motor is capable of pumping up to 70GPM of wastewater at 5ft of head pressure drop. The pump housing is made of epoxy coated cast iron for enhanced corrosion resistance and includes other composite and stainless steel non-corrosive parts.
Features
Permanent Split Capacitor (PSC)
Designed for continuous duty
Energy-saving low amp draw
1-1/2″ FNPT (38 mm) discharge
Handles solids up to 3/4″ (19 mm) diameter
Multiple switch options for automatic operation
140 °F (60 °C) liquid temperature rating
cCSAus listed
Specifications
Acme Tools Brand Name
LITTLE GIANT PUMP
Acme Tools Part Number
509805
Assembled Depth (in)
9.6
Assembled Height (in)
9.15
Assembled Weight (lbs)
27.5
Assembled Width (in)
6.8
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Mexico
Discharge Port (In)
1-1/2″ FNPT
Gallons Per Hour (gal)
4800
Materials Handled
Effluent wastewater removal, dewatering, water transfer
Maximum PSI
17.3
Maximum Suction Lift (Ft)
N/A
Maximum Total Head (Ft)
37
Package Contents
Little GIANT 9EC-CIM-RF 4/10HP 115V Effluent Pump, Owner’s Manual
Package Depth
11
Package Height
13
Package Weight
29.45
Solid Handling (in)
3/4
Start Type
Manual
