Description
Product Information
SKU361881

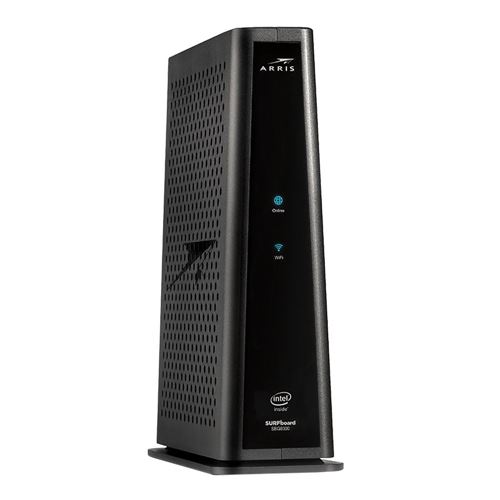

Mfr Part#SBG8300
UPC612572214626
Modem Specifications
LED Indicators:Online: Wi-Fi
Device Management:Web-based, SURFboard Central App
Internet Sharing Methods:Dynamic IP, DHCP
Encryption:AES, TKIP
Radio Signal Type:Direct Sequence Spread Spectrum (DSSS); Orthogonal Frequency-Division Multiplexing (OFDM)
Antenna:(1) Internal antenna
Frequency:2.4GHz, 5GHz
Number of Channels:32-Downstream Channels; 8-Upstream Channels
Standards
Network Compliant Standards (Wireless):802.11ac Wave 2
Cable Modem Compliant Standards:DOCSIS 3.0, DOCSIS 3.1
Networking
Error Control Protocol:FEC (DOCSIS Standard)
Data Transfer Specifications
Downstream Maximum Transfer Rate:Up to 4Gbps
Downstream Modulation:32 SC-QAM or 2 OFDM
Downstream Frequency Range:108MHz to 1002MHz
Upstream Maximum Transfer Rate:Up to 1 Gbps
Upstream Modulation:8 SC-QAM or 2 OFDMA
Upstream Frequency Range:5MHz to 85MHz (edge to edge)
Interfaces
Modem Interface:RJ-45 Ethernet Port
Ports and Connectors
Modem Ports and Connectors:(1) Coaxial F Type Female 75ohm Connector
Network Ports and Connectors:(4) RJ-45 10/100/1000 Port
System Requirements
Supported Windows Operating Systems:Microsoft Windows 7, 8, 10
Supported Macintosh Operating Systems:Mac OS 10.4 or Higher
Power Supply
Power Supply:12V DC 3.0A Adapter
What’s in the Box
What's in the Box:1 x Cable Modem, 1 x Power Supply, 1 x Ethernet Cable, 1 x Quick Start Guide
Warranty
Parts:2 Year Limited
