Description
Product Information
SKU956714
Mfr Part#1000031
UPC612572210727
Modem Specifications
LED Indicators:Power, Receive, Send, Online
Device Management:Web-based GUI Configuration
Standards
Network Compliant Standards (Wired):IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Cable Modem Compliant Standards:DOCSIS 3.0
Data Transfer Specifications
Downstream Maximum Transfer Rate:Up to 1000Mbps
Downstream Modulation:64 or 256 QAM
Downstream Frequency Range:88MHz to 1002MHz
Downstream Bandwidth:6MHz
Upstream Maximum Transfer Rate:Up to 240Mbps
Upstream Modulation:QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM
Upstream Frequency Range:5MHz to 42MHz
Upstream Bandwidth:TDMA 200KHz, 400KHz, 800KHz, 1600KHz, 3200KHz, 6400KHz; S-CDMA 1600KHz, 3200KHz, 6400KHz
Router Data Transfer Rate:10/100/1000Mbps
Interfaces
Modem Interface:RJ-45 Ethernet Port
Ports and Connectors
Modem Ports and Connectors:(1) LAN Gigabit Ethernet port; (1) WAN Female F connector
System Requirements
Supported Windows Operating Systems:Microsoft Windows XP SP3, Vista SP2, 7, 8, 10
Supported Macintosh Operating Systems:Mac OS X 10.4 or higher
Other Supported Operating Systems:Linux; UNIX
What’s in the Box

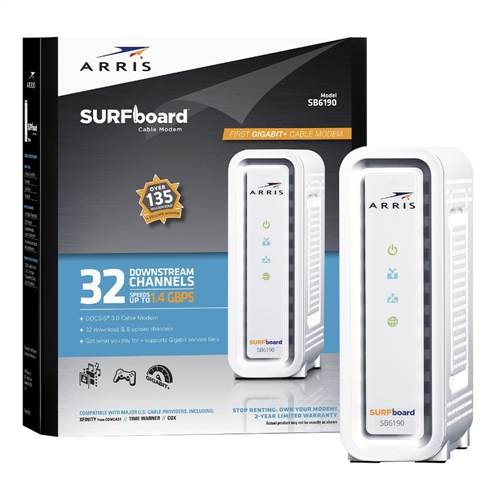

What's in the Box:SURFboard SB6190 Modem, Power Supply, CAT5e or higher Ethernet Cable, Software License and Regulatory Card
Warranty
Parts:2 Year Limited
Labor:2 Year Limited
