Description
Product Information
SKU433656
Mfr Part#MBB550PHANTOMGA
UPC4710483931512
General Specifications
Packaging:Retail
Chipset
Chipset:AMD B550
BIOS:256Mb AMI UEFI Bios
Manageability:SM BIOS 2.3
ACPI 5.1
CPU Support
AMD CPU Support:Ryzen
Socket Type:AM4
Memory Specifications
Memory Type:DDR4-2133
DDR4-2400
DDR4-2667
DDR4-2933
DDR4-3200
Memory Speeds Supported:4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133
Memory Slots:4 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Multi-GPU Support:2-Way CrossFireX
Storage Specifications
M.2 Port Type:2260
2280
22110
SATA Express:1 x M.2 Socket 3
M Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset:Realtek ALC1200
Audio Channels:7.1
Networking
WiFi Support:V-M.2 Slot
LAN Chipset:Realtek RTL8111H
LAN Speed:10/100/1000Mbps
Wireless Technology:802.11b
802.11g
802.11a
Bluetooth v4.2
WiFi 5 (802.11ac)
Expansion Slots
PCI Express 4.0 x16:2
PCI Express x1:2

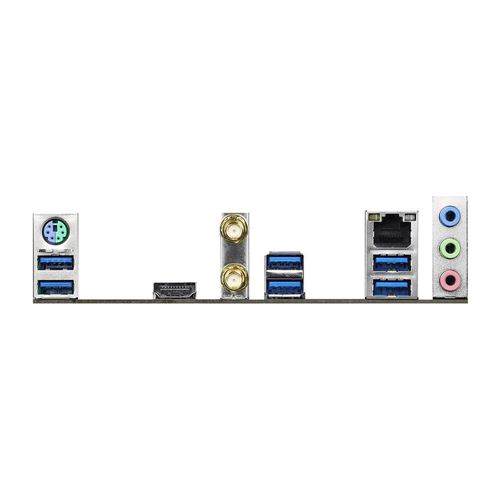

Back Panel Ports
Video Connectors:1 x HDMI 2.1
USB 3.1:6 x USB 3.2 (Gen 1 Type-A)
Specialty Ports:2 x WiFi Antenna Ports
Legacy Ports:1 x PS/2
LAN Ports:1 x 10/100/1000 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
Internal I/O & Connectors
Headers:1 x CPU Fan Header
4 x System Fan Header
1 x Water Pump Header
USB:2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
ATX Connector:24-pin
Physical Specifications
Depth:12.00 in. (305.00 mm)
Width:9.60 in. (243.84 mm)
Form Factor:ATX
Warranty
Parts:3 Years
Labor:3 Years

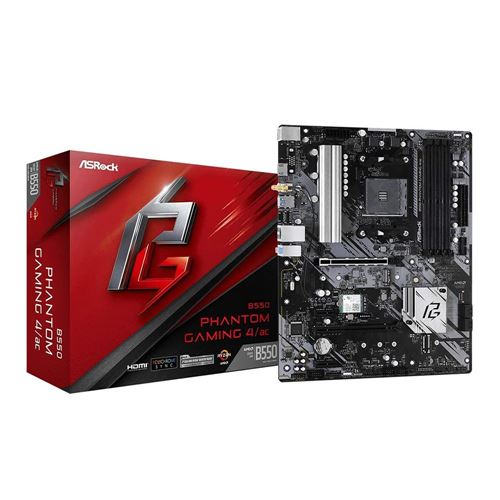

Package Contents
What's in the Box:Motherboard, Driver Disk, 2x SATA Cables, WiFi Antennas, M.2 Screws, I/O Shield
