Description
Product Information
SKU536060
Mfr Part#MB-B760M0ITX/D4
UPC4710483942242
General Specifications
Packaging:Retail
Chipset
Chipset:Intel B760
BIOS:128Mb AMI UEFI Bios
CPU Support
Intel CPU Support:Core i7
Core i5
Core i3
Celeron
Pentium
Core i9
Socket Type:LGA 1700
Memory Specifications
Memory Type:DDR4-2133
DDR4-2400
DDR4-2666
DDR4-2933
DDR4-3200
DDR4-2800
DDR4-3000
Memory Slots:2 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:ECC Memory Supported
Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type:2280
SATA Express:1 x M.2 Socket 3
E Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset:Realtek ALC897
Audio Channels:7.1
Networking
WiFi Support:M.2 Slot
LAN Chipset:Realtek RTL8111H
LAN Speed:10/100/1000Mbps
Wireless LAN Chipset:Intel 2×2 Wi-Fi 6E
Wireless Technology:802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
Expansion Slots
PCI Express 4.0 x16:1
Back Panel Ports
LAN Ports:1 x 10/100/1000 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
USB 2.0:2 x USB 2.0 (Type-A)
USB 3.1:1 x USB 3.2 (Gen 2×2 Type-C)
2 x USB 3.2 (Gen 1 Type-A)
Video Connectors:1 x HDMI 2.1
1 x DisplayPort 1.4
Specialty Ports:2 x WiFi Antenna Ports
Internal I/O & Connectors
Headers:1 x CPU Fan Header
1 x Water Pump Header
1 x System Fan Header
USB:2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:6.70 in. (170.00 mm)
Width:6.70 in. (170.00 mm)
Form Factor:Mini-ITX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents

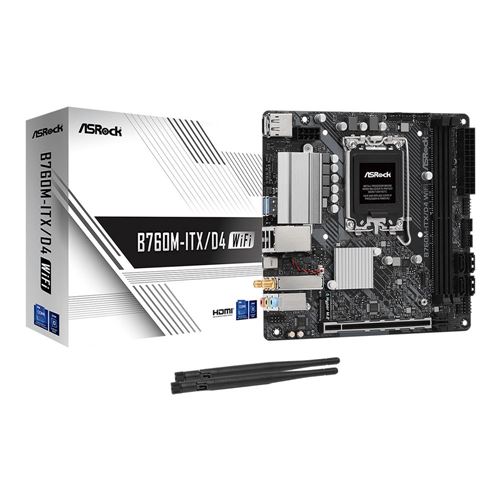

What's in the Box:Motherboard, Manual, I/O Shield, 2x SATA Cables, Antennas, M.2 Screws
