Description
Product Information
SKU342139
Mfr Part#MBZ690EXTREME
UPC4710483936067
General Specifications
Packaging:Retail
Microsoft Certifications:Windows 11 Ready
Chipset
Chipset:Intel Z690
BIOS:256Mb AMI UEFI Bios
Manageability:SM BIOS 2.7
ACPI 6.0
CPU Support
Intel CPU Support:Core i7
Core i5
Core i3
Celeron
Pentium
Core i9
Socket Type:LGA 1700
Memory Specifications
Memory Type:DDR4-2133
DDR4-2400
DDR4-2666
DDR4-2933
DDR4-3200
DDR4-2800
DDR4-3000
Memory Speeds Supported:5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Memory Slots:4 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Multi-GPU Support:2-Way CrossFireX
Storage Specifications
M.2 Port Type:2242
2260
2280
2230
22110
SATA Express:3 x M.2 Socket 3
M Key
SATA 6Gb/s:8
RAID Support:RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset:Realtek ALC1220
Audio Channels:7.1
Networking
WiFi Support:V-M.2 Slot
LAN Chipset:Realtek RTL8125B-CG 2.5G LAN
LAN 2 Chipset:Intel I219V
LAN Speed:10/100/1000/2500Mbps
Expansion Slots
PCI Express 4.0 x16:1
PCI Express 5.0 x16:1
PCI Express 3.0 x16:1
PCI Express x1:1
Back Panel Ports
USB 3.1:4 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
Video Connectors:1 x HDMI 2.1
1 x DisplayPort 1.4
Legacy Ports:1 x PS/2
LAN Ports:1 x 10/100/1000 RJ-45 LAN
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
1 x 3.5 mm Line-Out
Digital Audio:1 x Optical
Internal I/O & Connectors
Headers:1 x CPU Fan Header
1 x Water Pump Header
5 x System Fan Header
USB:2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 2×2 Type-C Header (1 Port)
Power
Power Connectors:1 x 24-pin ATX Connector
2 x 8-pin +12 V Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:12.00 in. (305.00 mm)
Width:9.61 in. (244.00 mm)
Form Factor:ATX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents

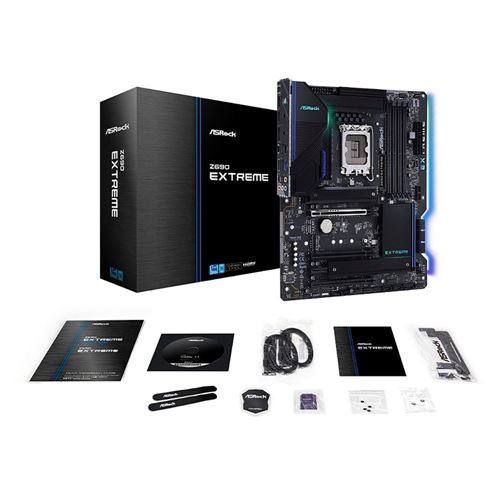

What's in the Box:Motherboard, Install Guide, Driver Disc, 4x SATA Cables, Antenna, M.2 Screws and Standoffs, Graphics Cards Holder
