Description
Product Information
SKU531772
Mfr Part#PROARTB650CRT
UPC195553988094
General Specifications
Packaging:Retail
Chipset
Chipset:AMD B650
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
Manageability:WOL
PXE
CPU Support
AMD CPU Support:Ryzen
Socket Type:AM5
Memory Specifications
Memory Type:DDR5-4800
DDR5-5200
DDR5-5000
Memory Speeds Supported:6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800
Memory Slots:4 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:ECC Memory Supported
Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type:2242
2260
2280
22110
SATA Express:1 x M.2 Socket 3
E Key
3 x M.2 Socket 3
M Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset:Realtek
Audio Channels:7.1
Networking
LAN Chipset:Realtek 2.5Gb Ethernet
LAN 2 Chipset:Realtek 1Gb Ethernet
LAN Speed:10/100/1000/2500Mbps
Expansion Slots
PCI Express 4.0 x16:3
PCI Express x1:1
Back Panel Ports
Video Connectors:1 x HDMI 2.1
USB 2.0:2 x USB 2.0 (Type-A)
USB 3.1:3 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 2 Type-C)
LAN Ports:1 x 10/100/1000 RJ-45 LAN
1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
1 x 3.5 mm Line-Out
Digital Audio:1 x Optical
Internal I/O & Connectors
Headers:4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan Header
USB:2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2×2 Type-C Header (1 Port)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V Connector
1 x 6-pin PCIe Graphics Card Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:12.00 in. (305.00 mm)
Width:9.60 in. (243.84 mm)
Form Factor:ATX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents

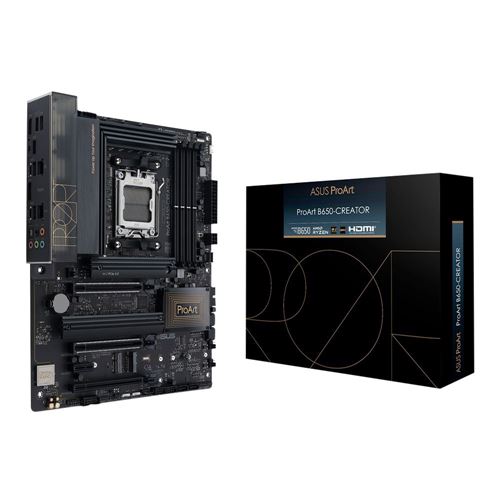

What's in the Box:Motherboard, DisplayPort Cable, 2x SATA Cables, Q-Connector, M.2 Rubber Package, M.2 Screws, ProArt Ruler, ACC Express Activation Card, Guide
