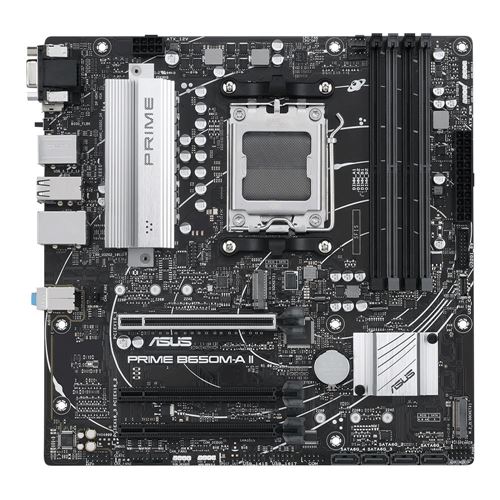

Description
Product Information
SKU536359
Mfr Part#PRIMEB650MA2CSM
UPC197105025547
General Specifications
Packaging:Retail
Chipset
Chipset:AMD B650
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
Manageability:WOL
PXE
CPU Support
AMD CPU Support:Ryzen
Socket Type:AM5
Memory Specifications
Memory Type:DDR5-4800
DDR5-5200
DDR5-5000
Memory Speeds Supported:6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
Memory Slots:4 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:ECC Memory Supported
Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type:2242
2260
2280
SATA Express:2 x M.2 Socket 3
M Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 10
Audio Specifications
Audio Chipset:Realtek
Audio Channels:7.1
Networking
LAN Chipset:Realtek 2.5Gb Ethernet
LAN Speed:10/100/1000/2500Mbps
Expansion Slots
PCI Express 4.0 x16:3

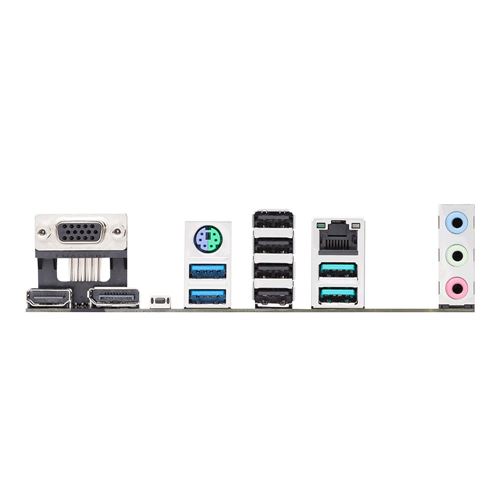

Back Panel Ports
Legacy Ports:1 x PS/2
LAN Ports:1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
USB 2.0:4 x USB 2.0 (Type-A)
USB 3.1:2 x USB 3.2 (Gen 1 Type-A)
2 x USB 3.2 (Gen 2 Type-A)
Video Connectors:1 x VGA 15-pin
1 x HDMI 2.1
1 x DisplayPort 1.4
Internal I/O & Connectors
Headers:3 x System Fan Header
2 x CPU Fan Header
USB:2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:9.60 in. (243.84 mm)
Width:9.60 in. (243.84 mm)
Form Factor:microATX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents

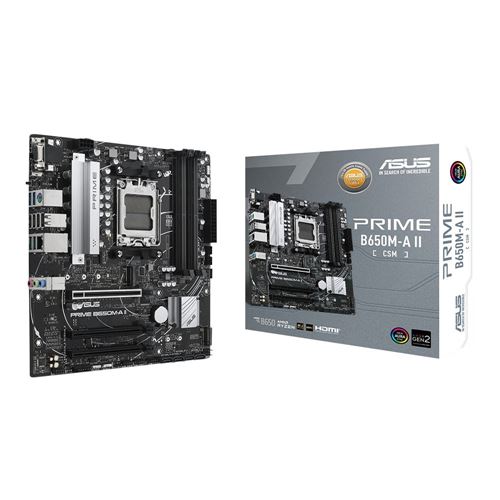

What's in the Box:Motherboard, I/O Shield, 2x SATA Cables, M.2 Screws, Manual
