Description
Product Information
SKU536383
Mfr Part#ROGB760IGMWFD5
UPC195553997652
General Specifications
Packaging:Retail
Chipset
Chipset:Intel B760
BIOS:128Mb AMI UEFI Bios
Manageability:WOL
PXE
CPU Support
Intel CPU Support:Core i7
Core i5
Core i3
Celeron
Pentium
Core i9
Socket Type:LGA 1700
Memory Specifications
Memory Type:DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
Memory Speeds Supported:7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800
Memory Slots:2 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:64GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type:2242
2260
2280
SATA Express:2 x M.2 Socket 3
M Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset:ROG SupremeFX S1220A
Audio Channels:7.1
Networking
WiFi Support:Onboard WiFi
LAN Chipset:Intel 2.5Gb Ethernet
LAN Speed:10/100/1000/2500Mbps
Wireless LAN Chipset:Intel 2×2 Wi-Fi 6E
Wireless Technology:802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
Expansion Slots
PCI Express 5.0 x16:1

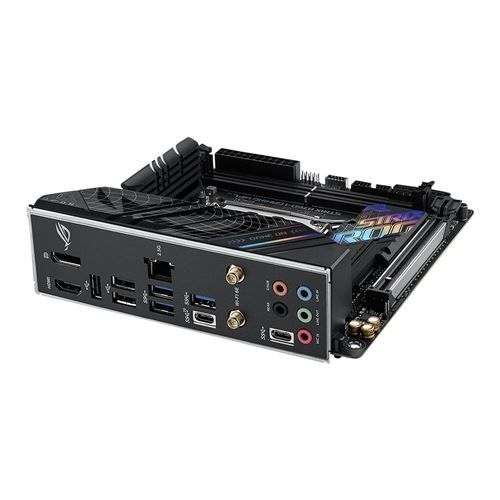

Back Panel Ports
LAN Ports:1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Rear Speaker
1 x 3.5 mm Subwoofer
1 x 3.5 mm Line-Out
Video Connectors:1 x HDMI 2.1
1 x DisplayPort 1.4
USB 2.0:3 x USB 2.0 (Type-A)
USB 3.1:1 x USB 3.2 (Gen 2×2 Type-C)
3 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 1 Type-C)
Specialty Ports:2 x WiFi Antenna Ports
Internal I/O & Connectors
Headers:1 x CPU Fan Header
1 x Water Pump Header
1 x System Fan Header
USB:1 x USB 2.0 Header (2 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 2 Type-C Header (1 Port)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:6.70 in. (170.00 mm)
Width:6.70 in. (170.00 mm)
Form Factor:Mini-ITX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents

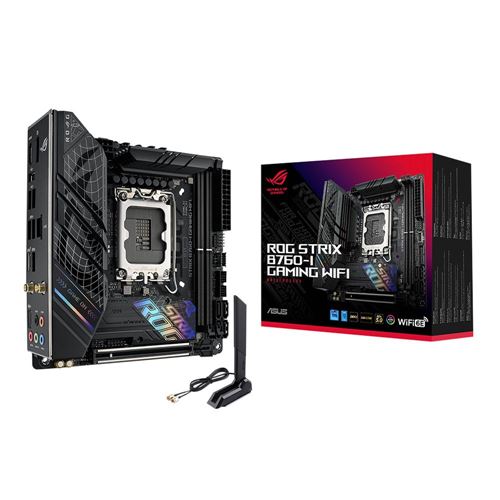

What's in the Box:Motherboard, 2x SATA Cables, ROG USB 2.0 Splitter Cable, Panel Cable, M.2 Thermal Pad, Antennas, Cable Ties, M.2 Rubber Package, M.2 Screws, M.2 Bracket, ROG Key Chain, ROG Stickers, Manual
