Description
Product Information
SKU536300
Mfr Part#PRIMEB760PLUSD4
UPC195553970303
General Specifications
Packaging:Retail
Chipset
Chipset:Intel B760
BIOS:128Mb AMI UEFI Bios
Manageability:WOL
PXE
CPU Support
Intel CPU Support:Core i7
Core i5
Core i3
Celeron
Pentium
Core i9
Socket Type:LGA 1700
Memory Specifications
Memory Type:DDR4-2133
DDR4-2400
DDR4-2666
DDR4-2933
DDR4-3200
DDR4-2800
DDR4-3000
Memory Speeds Supported:5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Memory Slots:4 x 288pin DIMM
Memory Channel Support:Dual Channel
Max Memory Supported:128GB
Maximum Memory Supported Per Slot:32GB
Supported Memory Technologies:Non-ECC Memory Supported
Video Specifications
Onboard Graphic Chipset:Requires CPU with Integrated Graphics
Storage Specifications
M.2 Port Type:2242
2260
2280
22110
SATA Express:1 x M.2 Socket 3
E Key
3 x M.2 Socket 3
M Key
SATA 6Gb/s:4
RAID Support:RAID 0
RAID 1
RAID 5
RAID 10
Audio Specifications
Audio Chipset:Realtek
Audio Channels:7.1
Networking
LAN Chipset:Realtek 2.5Gb Ethernet
LAN Speed:10/100/1000/2500Mbps
Expansion Slots
PCI Express 4.0 x16:1
PCI Express 5.0 x16:1
PCI Express x1:2

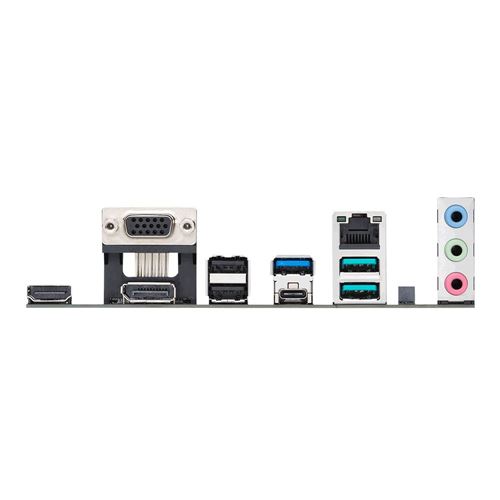

Back Panel Ports
LAN Ports:1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports:1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-Out
USB 2.0:2 x USB 2.0 (Type-A)
USB 3.1:1 x USB 3.2 (Gen 2×2 Type-C)
2 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 1 Type-A)
Video Connectors:1 x VGA 15-pin
1 x HDMI 2.1
1 x DisplayPort 1.4
Internal I/O & Connectors
Headers:3 x System Fan Header
2 x CPU Fan Header
USB:2 x USB 2.0 Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)
Power
Power Connectors:1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
ATX Connector:24-pin ATX Power Connector
Physical Specifications
Depth:12.00 in. (305.00 mm)
Width:9.60 in. (243.84 mm)
Form Factor:ATX
Warranty
Parts:3 Years
Labor:3 Years
Package Contents
What's in the Box:Motherboard, 2x SATA Cables, I/O Shield, M.2 Rubber Package, M.2 Screws, Manual
