Description

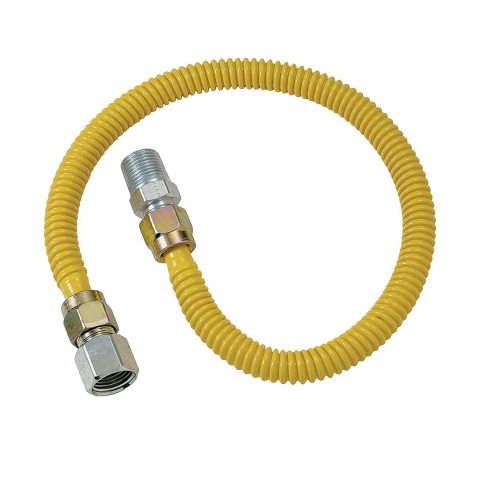

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
| Diameter | : | 3/8 in ID x 1/2 in OD |

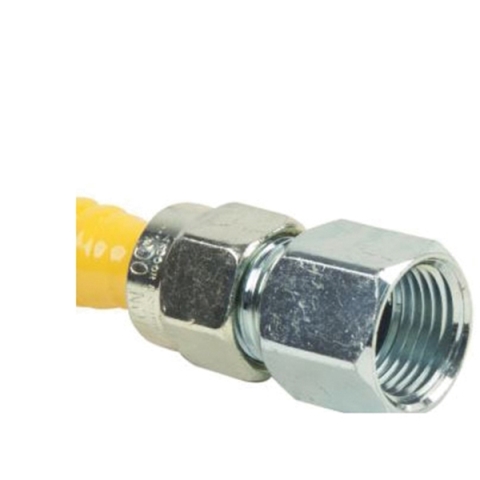

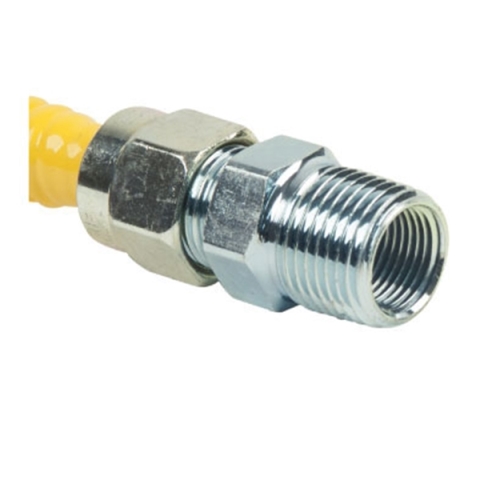

| Includes | : | 1/2 in FIP and 1/2 in MIP (Tapped 3/8 in FIP) Steel Fittings |
| Inlet Connection Size | : | 1/2 in |
| Inlet Type | : | FIP |
| Length | : | 48 in |
| Material | : | Stainless Steel |
| Nominal Size | : | 1/2 x 1/2 in |
| Operating Temperature | : | -40 to 150 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Type | : | MIP |
| Pressure Rating | : | 0.5 psi |
| Suitable for | : | Natural, Manufactured, Mixed and Liquefied Petroleum (LP or Propane) Gases and LP Gas-Air Mixtures |
| Temperature Rating | : | -40 to 150 deg F |
| Type | : | Straight |
