Description

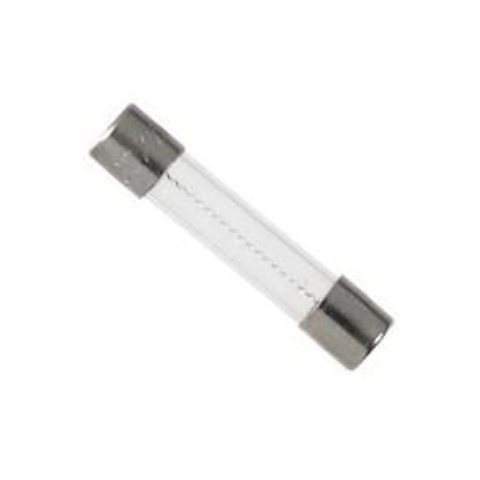

Original electronic fast acting fuse. 1/4 in x 1-1/4 in glass tube with nickel-plated brass endcaps. 250 V maximum. UL Listed, CSA certification.
Body Material | : | Glass |
Contact Material | : | Brass |
Current Rating | : | 5 A |
Diameter | : | 1/4 in |
Element Type | : | Single |
Fuse Group | : | G |
Fuse Type | : | Electronic, Fast Acting |
Interrupt Rating | : | 200 A, 10 kA |
Length | : | 1-1/4 in |
Rejection/Non-Rejection | : | Non-Rejection |
Resistance | : | 0.024 Ohm |
Terminal Type | : | Ferrule |
Voltage Rating | : | 250 V |
