Description

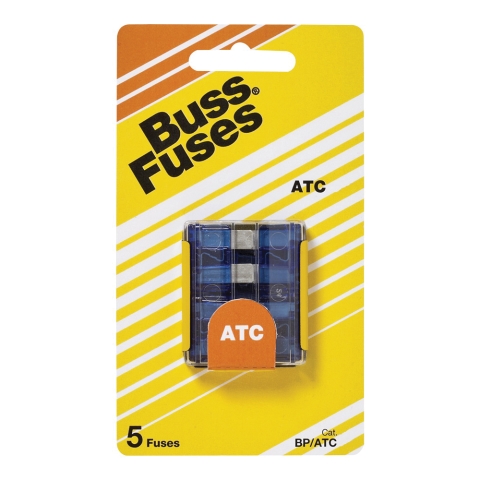

ATC blade fuses use the industry standard color coding to indicate amp rating. Bussmann Series ATC fuses are UL recognized and feature an enclosed element for electrical isolation, corrosion resistance and longer service life.
| Body Material | : | Plastic |
| Color | : | Violet |
| Contact Material | : | Zinc |
| Current Rating | : | 3 A |
| Element Type | : | Single |
| Fuse Type | : | Blade |
| Interrupt Rating | : | 1 kA |
| Length | : | 3/4 in |
| Operating Temperature | : | -40 to 100 deg C |
| Rejection/Non-Rejection | : | Non-Rejection |
| Voltage Rating | : | 32 VDC |
