Description

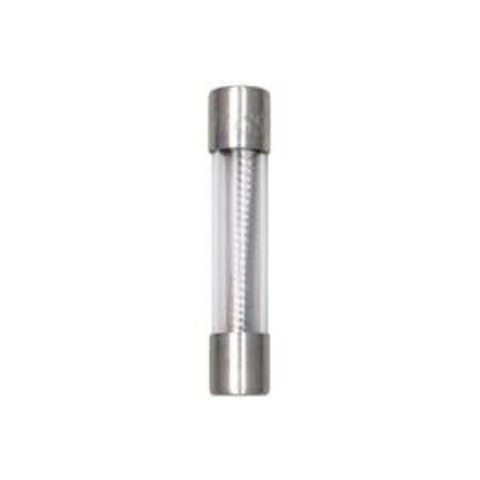

Glass tube. Plated brass end caps. 1/4 in x 1-1/4 in. 250 VAC rating maximum. UL listed.
Body Material | : | Glass |
Contact Material | : | Brass |
Current Rating | : | 3 A |
Diameter | : | 1/4 in |
Element Type | : | Single |
Fuse Group | : | G |
Fuse Type | : | Electronic Miniature, Time Delay |
Interrupt Rating | : | 100 A, 10 kA |
Length | : | 1-1/4 in |
Rejection/Non-Rejection | : | Non-Rejection |
Resistance | : | 0.057 Ohm |
Terminal Type | : | Ferrule |
Voltage Rating | : | 250 V |
