Description

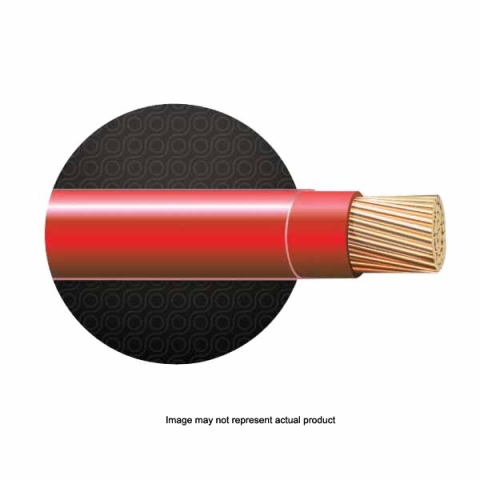

Thermoplastic insulated copper wire with a nylon covering. Sizes 8 AWG through 1000 kcmil feature Cerrowire SLiPWire™ Technology for fast and easy pulling in conduit. This 90 deg C, 600 V building wire is for use in residential, commercial and industrial applications. Intended for use in accordance with the National Electrical Code® in both wet and dry locations. Sunlight-resistant in black only 8 AWG through 1000 kcmil. Conductors 14 AWG through 1 AWG are marked VW-1 and 1/0 AWG through 1000 kcmil are rated for use in cable tray. When used as appliance wire, 105 deg C dry rated.
| Conductor Insulation | : | PVC |
| Conductor Material | : | Copper |
| Current Rating | : | 15 A |
| Length | : | 500 ft |
| Operating Temperature | : | 90 deg C |
| Sheath Color | : | Red |
| Sheath Diameter | : | 0.104 in |
| Sheath Material | : | Nylon |
| Stranded/Solid | : | Solid |
| Type | : | THHN/THWN-2 |
| Voltage Rating | : | 600 V |
| Wire Size | : | 14 AWG |
