Volt Tester with Laser Dist Meter

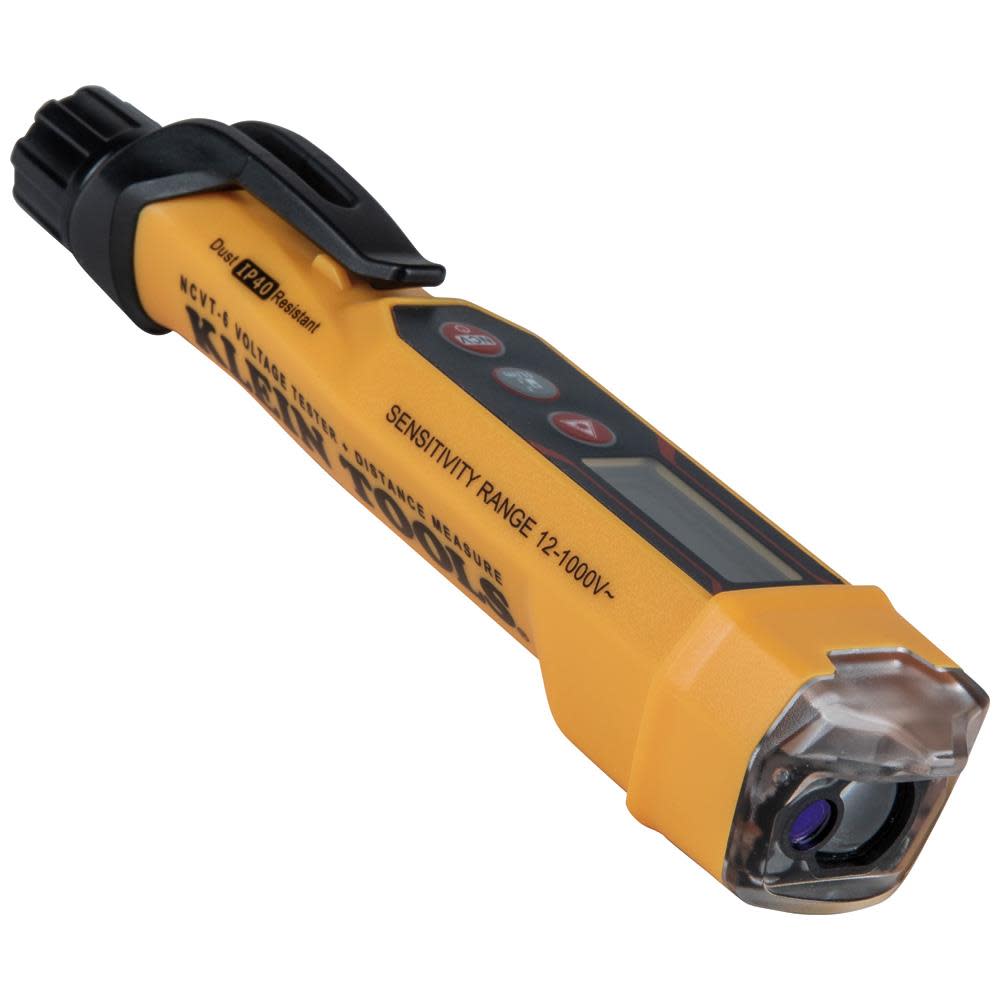

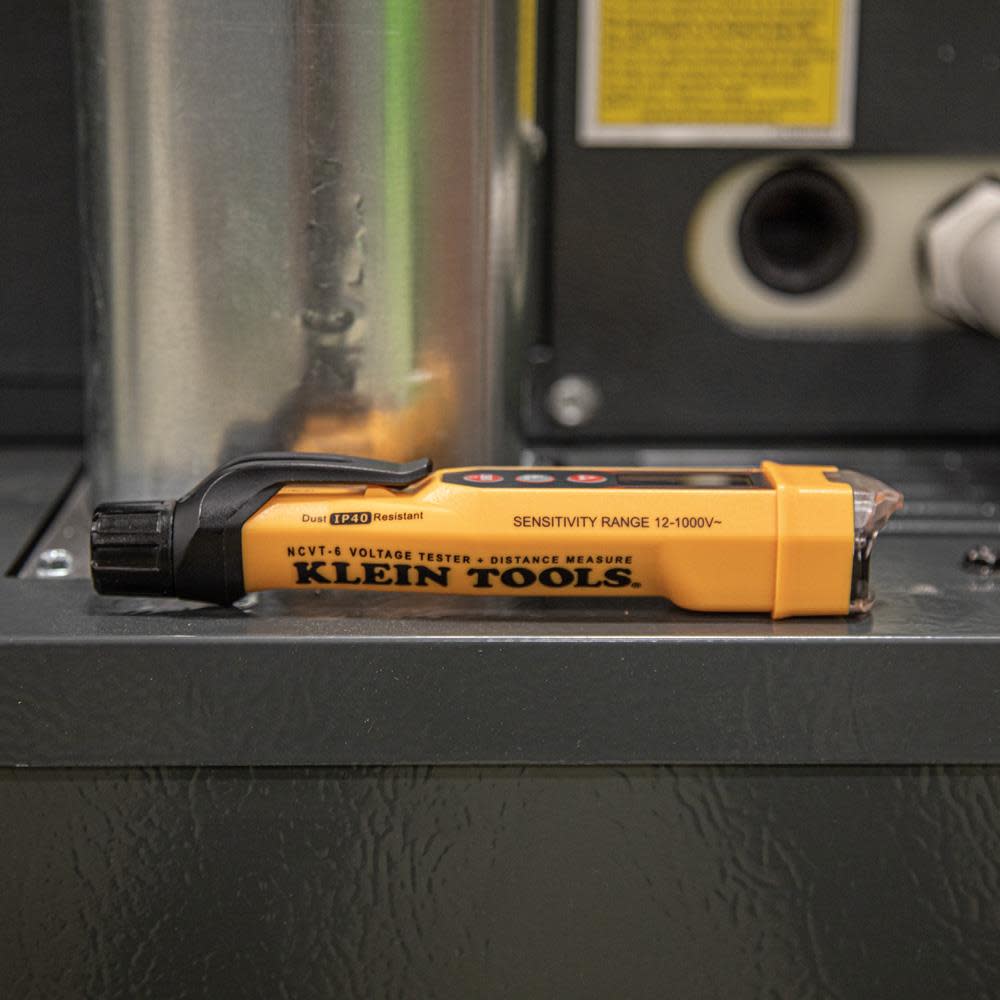

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.
Features

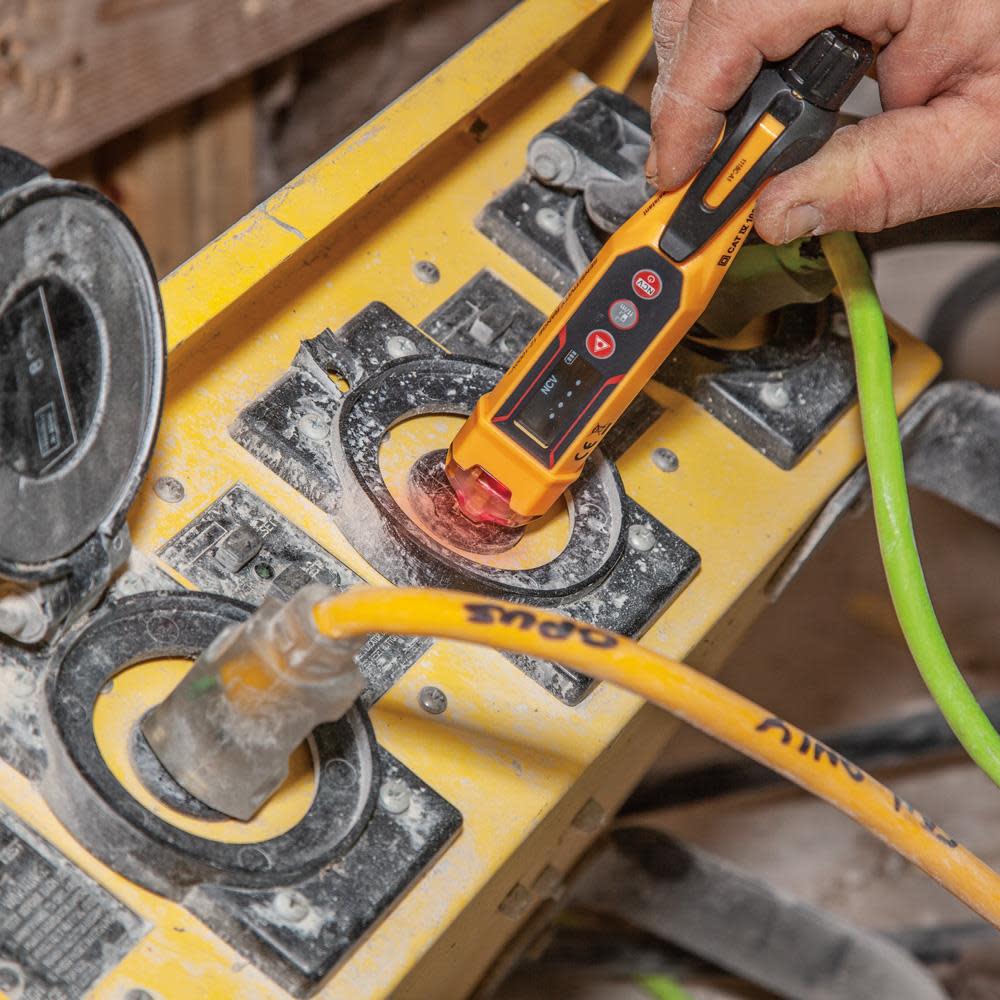

Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control, and irrigation systems
Detects AC voltage from 12 to 1000V with visual and audible indicators

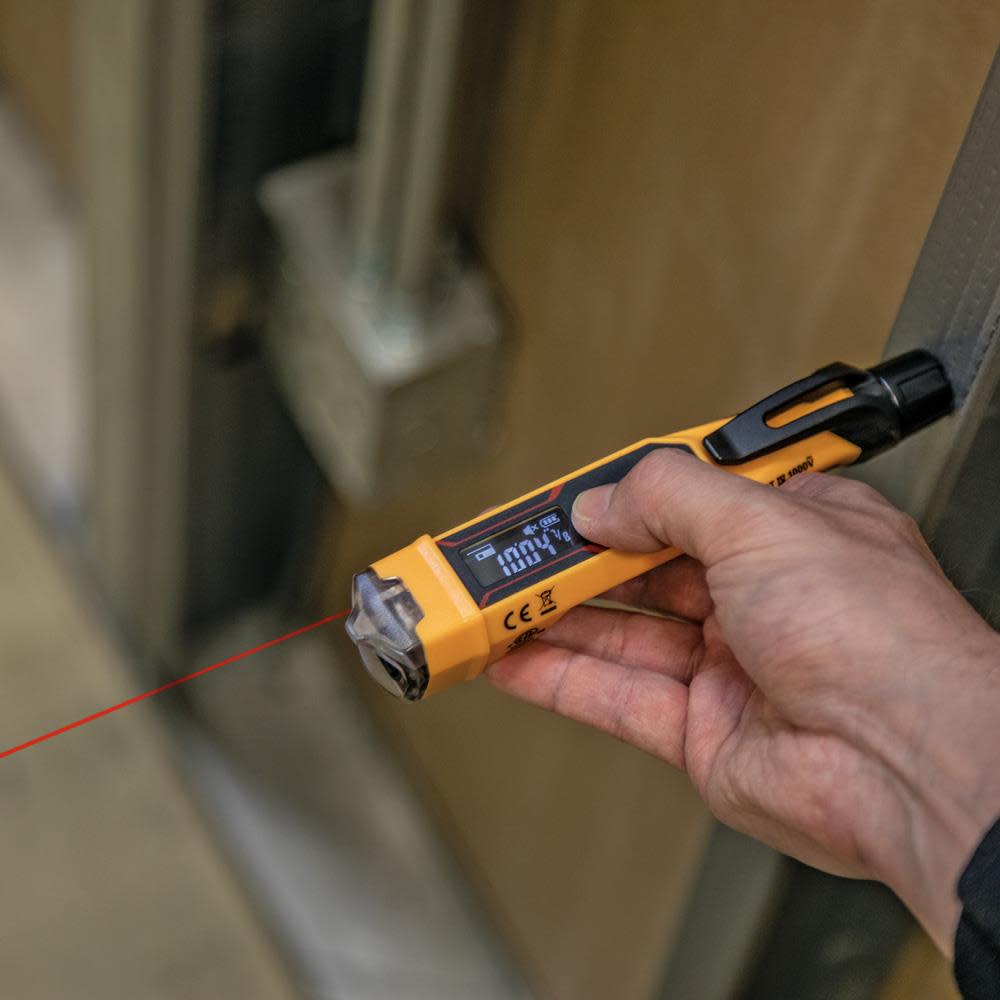

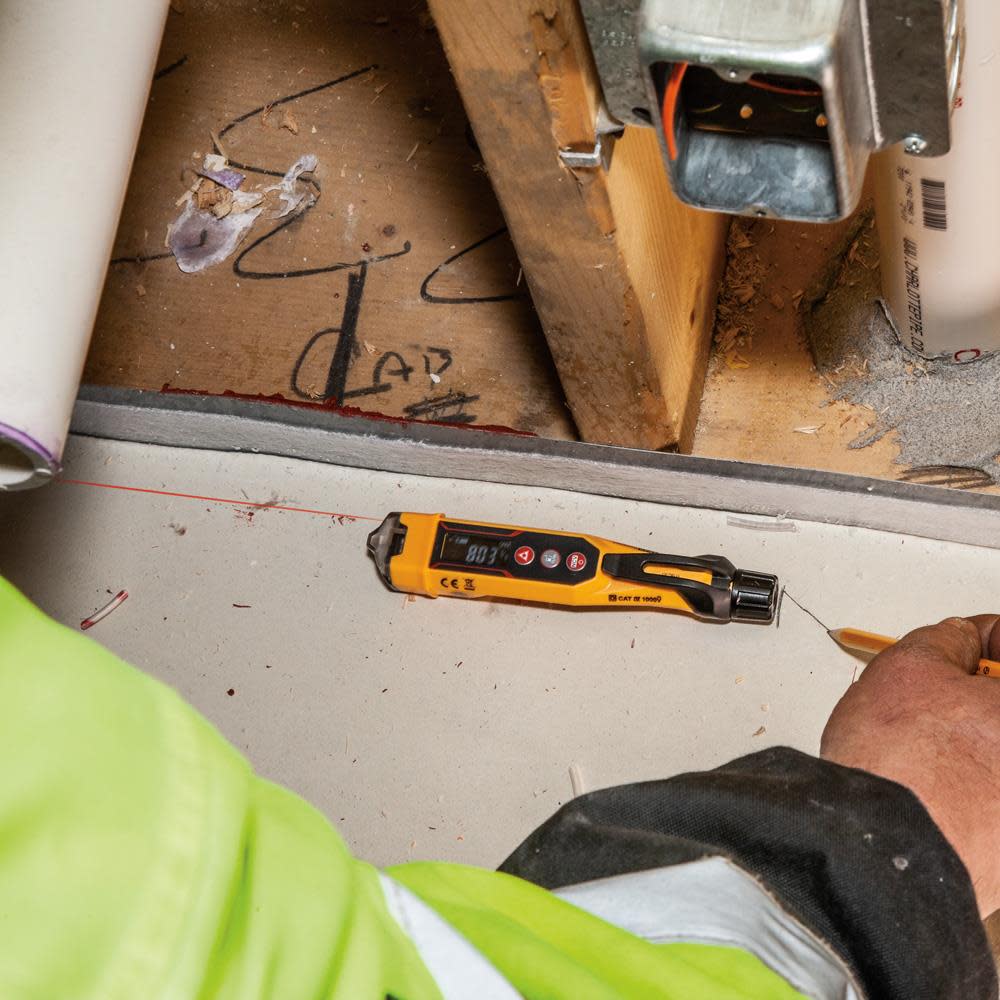

Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with fractions
High-visibility reverse contrast display for better viewing in low light conditions
Laser Class II, 630 to 670nm, Max. Power <1mW
Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
Built to withstand a 6.6-Foot (2 m) drop
Specifications
Acme Tools Brand Name
KLEIN TOOLS
Acme Tools Part Number
NCVT-6
Assembled Weight (lbs)
2.50000
Battery Quantity Required
2
Battery Size
AAAA
California Proposition 65 Warning Required
Yes
Color / Finish
Yellow
Country of Origin
China
DC Polarity Indicator
No
DC Voltage
0
Digital Display
Not Required
Internal Supplier Part #
NCVT6
Internet Product Code (IPC)
0E97BC71B68
Manufacturer Warranty
Normal life of the product
Material
Plastic and Electronic Assemblies
Package Weight
0.3
Package Weight (lbs)
0.3
Tester Type
Voltage
